This article explains troubleshooting steps that can be taken when Smart Card Validation is failing with the following error message:

Certificate Validation failed. Try again by quitting the browser then selecting another certificate.



Steps to reproduce the issue:

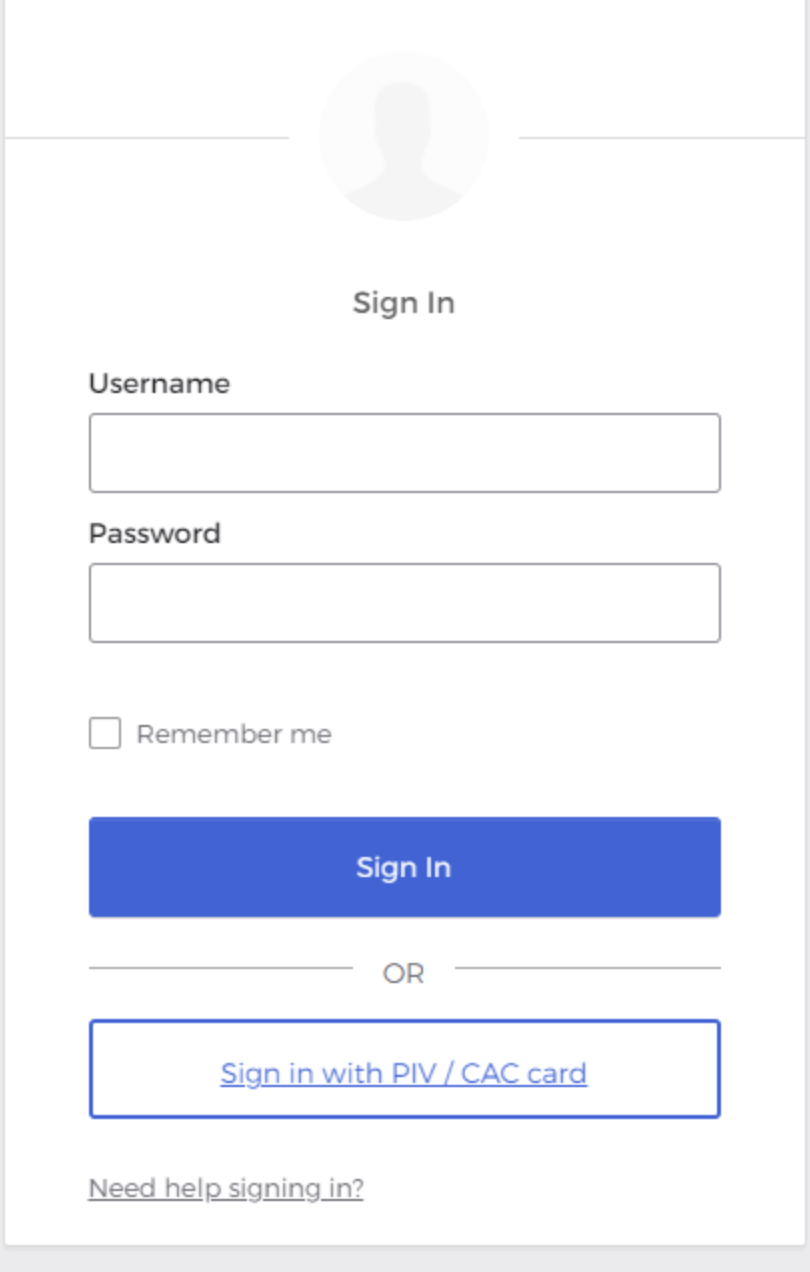

• Access the Okta login page and select Sign in with PIV/CAC Card.

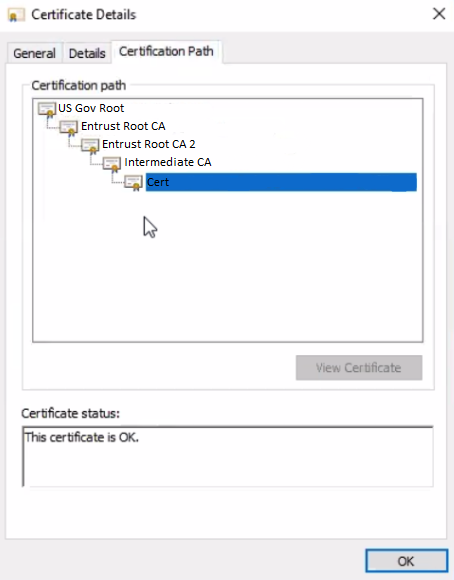

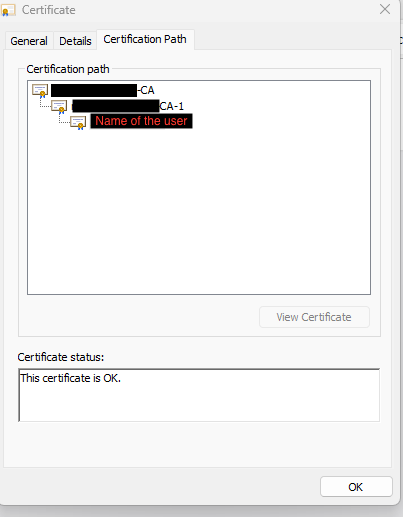

• Select the Certificate from the list and enter the PIN to unlock it. If clicking on the certificate, see the Certificate status in the second part of the screen prompt.

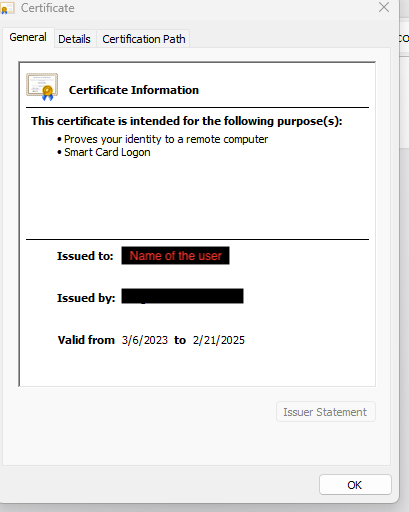

• Then, check the validity of the certificate:

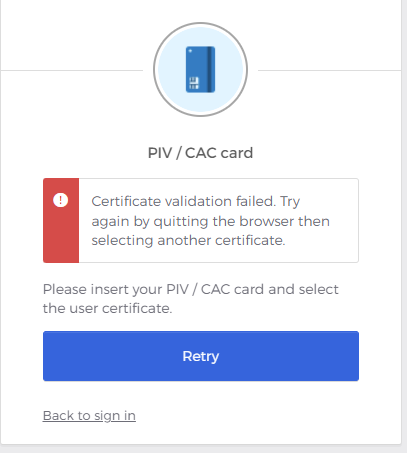

• Everything seems to be okay, but when trying to log in, the error Certificate Validation failed. Try again by quitting the browser then selecting another certificate is received.

• Okta Classic Engine
• PIV / CAC Card
• Smart Card Validation

To resolve this issue:

• Rekey or reissue the certificate:

  • Rekeying a certificate generates a new key and certificate with the same name and expiration date as a previously purchased certificate. Rekeys are free and can be used if a key has been lost or compromised. HOSTNAME is the name of an active certificate on the account that is required to be reissued.

• Install the correct and complete chain:

  • If using a 3rd party CA please contact them and provide the correct chain. Make sure it is updated. Sometimes they revoke the chain and provide a new chain that invalidates the end user login.

• Validate that the Serial Number and Expiration date are still valid.

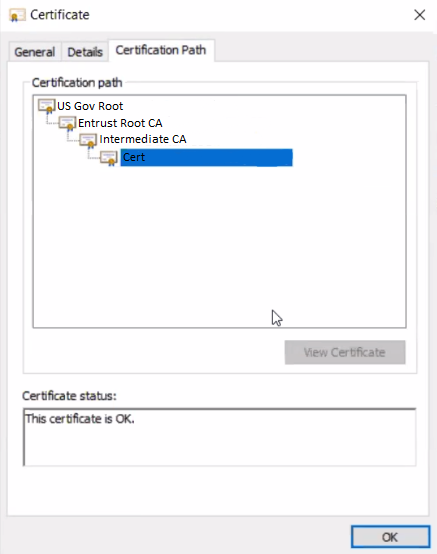

• Ensure that the correct chain is uploaded to Okta under Security > Identity Providers > Select the name of the IdP > Actions and click Edit > Configure.... > Under Certificate chain, click Edit > Browse and select the new chain.
