The Azure OAG image uses the waagent and this agent creates logs that are handled by the system.
- Okta Access Gateway (OAG)
- Azure
- waagent
- syslog-ng
If the file /etc/syslog-ng/conf.d/azuremonitoragent-tcp.conf does not have the correct source, the syslog-ng service will not be able to start because it cannot resolve the value. The symptoms of this will be that no logs for the system will be generated. If log forwarding is used, then no logs will be seen.
Further Investigation
To investigate further, access the shell.
If looking at the log files or trying to tail them, nothing will be shown. The command below will show the logs for the current day and previous day.
ls -l /opt/oag/logs/all/The following location can be checked if both logs are empty above to see the last time the system was writing logs. Each appliance keep logs for 30 days.
ls -ltr /opt/oag/logs/archive/all/Refer to this article to troubleshoot why the syslog service is failing.
If the output points to this file /etc/syslog-ng/conf.d/azuremonitoragent-tcp.conf, please follow the steps from the solution section below.

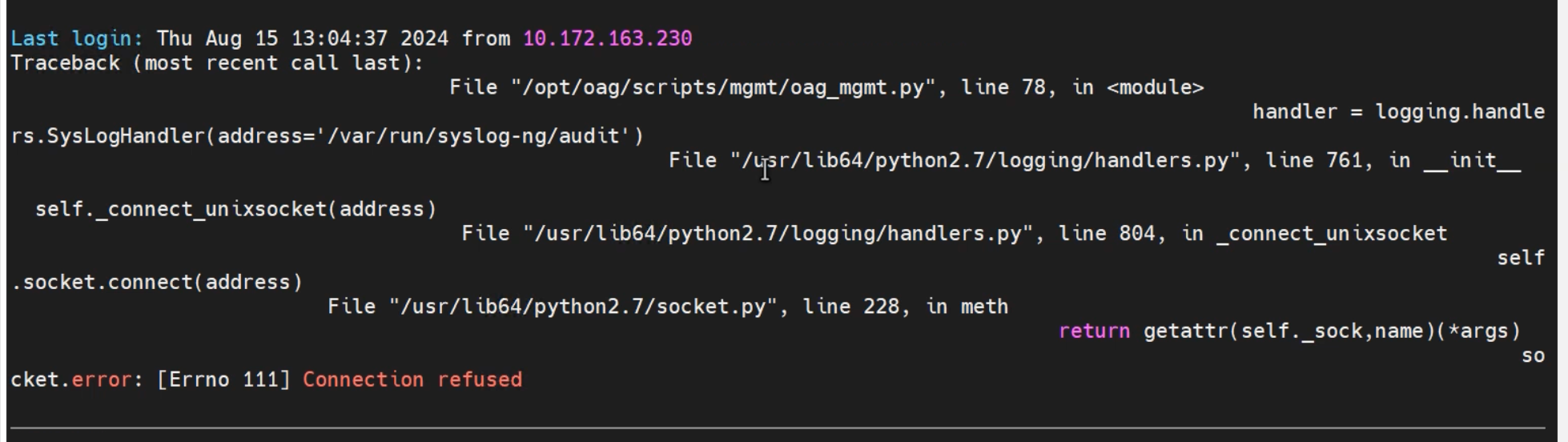

Symptoms of a Failing Service
If the syslog-ng service is not running then management console will fail to connect with the error below. A reboot is currently required in order to connect to the management console when syslog-ng is down.
The correct version of the file "/etc/syslog-ng/conf.d/azuremonitoragent-tcp.conf" is shown below:
# Azure MDSD configuration: syslog forwarding config for mdsd agent
options {};
# during install time, we detect if s_src exist, if it does then we
# replace it by appropriate source name like in redhat 's_sys'
# Forwrding using tcp
destination d_azure_mdsd {
network("127.0.0.1"
port(28330)
flags(no_multi_line)
log-fifo-size(25000));
};
log {
source(s_sys); # will be automatically parsed from /etc/syslog-ng/syslog-ng.conf
destination(d_azure_mdsd);
flags(flow-control);
};
Following is an example of incorrect config created by WAAgent. The difference can be seen in source value i.e. source(s_sys) is the expected config but has been configured as source(s_src) below by the agent.
# Azure MDSD configuration: syslog forwarding config for mdsd agent
options {};
# during install time, we detect if s_src exist, if it does then we
# replace it by appropriate source name like in redhat 's_sys'
# Forwrding using tcp
destination d_azure_mdsd {
network("127.0.0.1"
port(28330)
flags(no_multi_line)
log-fifo-size(25000));
};
log {
source(s_src); # will be automatically parsed from /etc/syslog-ng/syslog-ng.conf <<<<<<<<<<<<<<<<<<
destination(d_azure_mdsd);
flags(flow-control);
};
