This article provides steps for troubleshooting common macOS Desktop MFA Recovery PIN issues.
- Okta Device Access (ODA)
- Desktop MFA Recovery
- macOS
- Okta Identity Engine
Errors with Desktop MFA Recovery PIN are usually caused by Device Access SCEP certificates, the configuration for which can be validated in the Okta Manual Chapter: Device Access SCEP certificates.
Errors can also appear if the Admin does not have the necessary permissions outlined in the manual chapter: Standard administrator roles and permissions: Devices.

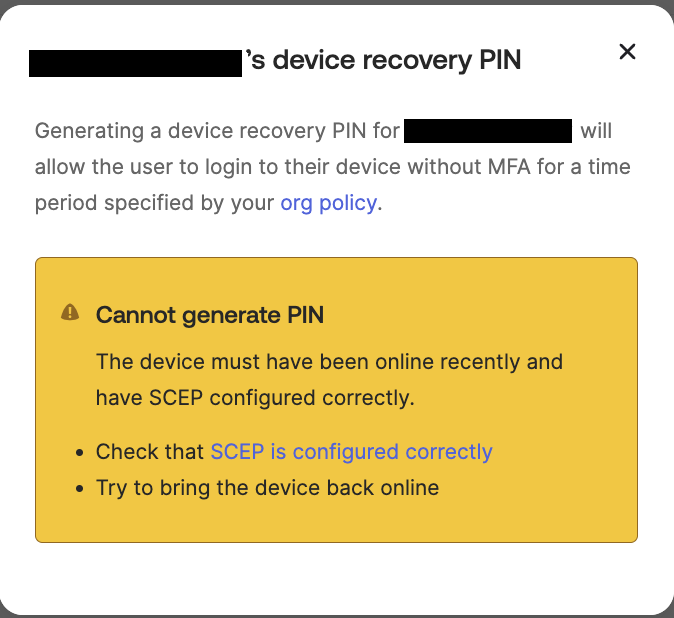

A recovery PIN cannot be generated from the Admin Console.
Below are possible solutions if the admin is seeing the above error:
-
Ensure the prerequisites mentioned in the Desktop MFA Recovery guide are completed.
-
The device is registered for recovery the next time a user logs in after enrolling in DMFA. The device needs to be online for registration. Until then, the admin console will show an error if an admin tries to generate a recovery pin for that user.
-
Failure to register a device:
System logs can be found in /var/log/com.okta.deviceaccess/OktaDeviceAccess.log on macOS devices
If the device registration step fails (during registration of the recovery code), it may be due to an issue with the SCEP certificates. Refer to the Okta Help Page to make sure the SCEP profile is correctly configured.
Users can verify if the correct SCEP profile is installed on the device:
On MacOS

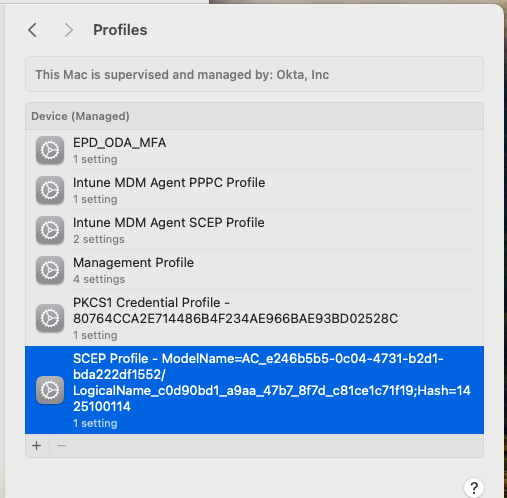

By navigating to Settings > General > Device Management > Profiles.

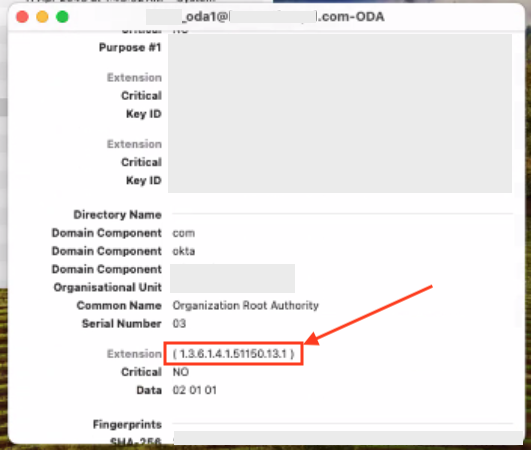

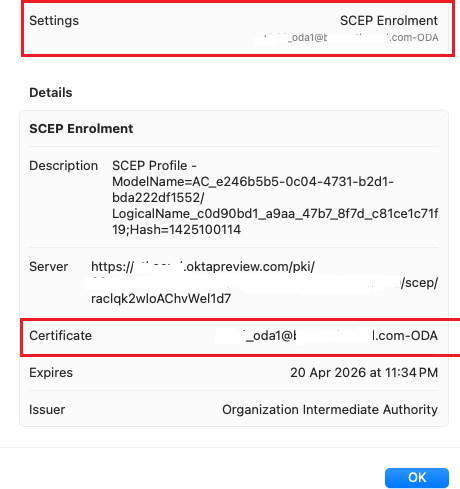

The user can open the profile and verify details.

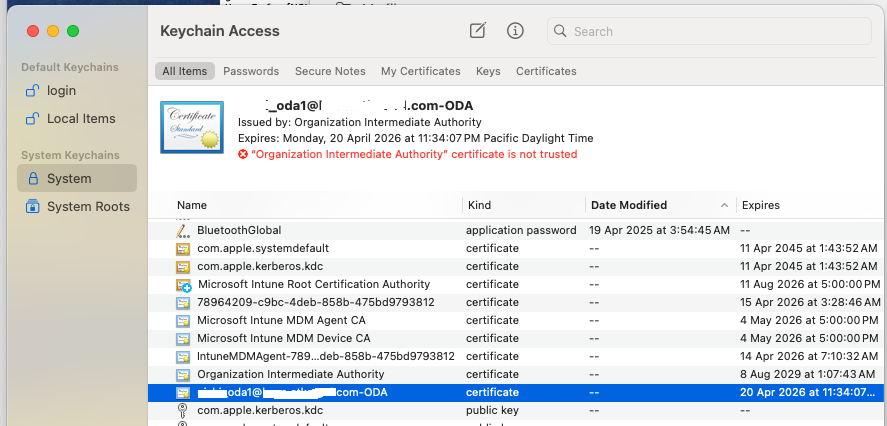

The user can also see the certificate installed under Keychain Access > System > Certificates.
On Windows
Verifying Device Management SCEP Certificate Installed Successfully on Desktop OS
If the below error is seen, it likely means that there are no Device Access SCEP certificates on the device, or it may be invalid:
>{ "Recovery-Management": {"message": "Creating a new recovery enrollment", "defaultProperties": "", "location": "RecoveryManager.swift:registerRecoverySecret():96"}}
>{ "Recovery-Management": {"message": "Registration failed: Error Domain=OktaDAServiceDaemon Code=19 "Cert error: JWT generation failed with: genericError("Error generating management hint: noMatchingCertificate.")" UserInfo={NSLocalizedDescription=Cert error: JWT generation failed with: genericError("Error generating management hint: noMatchingCertificate.")}", "defaultProperties": "", "location": "CommunicationsManager.swift:registerRecoverySecret():319"}}
If the following error is seen, it likely means that DMFA has found an SCEP certificate, but the back-end considers it invalid. This could happen if the device is deleted from the admin console.
{"Recovery-Management": {"message": "Registration failed: Error Domain=OktaDAServiceDaemon Code=19 "Registration error: Response decoding failed with: keyNotFound(CodingKeys(stringValue: "id", intValue: nil), Swift.DecodingError.Context(codingPath: [], debugDescription: "No value associated with key CodingKeys(stringValue: \"id\", intValue: nil) (\"id\").", underlyingError: nil))" UserInfo={NSLocalizedDescription=Registration error: Response decoding failed with: keyNotFound(CodingKeys(stringValue: "id", intValue: nil), Swift.DecodingError.Context(codingPath: [], debugDescription: "No value associated with key CodingKeys(stringValue: \"id\", intValue: nil) (\"id\").", underlyingError: nil))}", "defaultProperties": "", "location": "CommunicationsManager.swift:registerRecoverySecret():281"}}
If the device is deleted from the admin console, follow these steps:
-
- Uninstall the SCEP profile.
- Validate that the OS has removed the certificates from the keychain(macOS) or managed user/computer certificates(Windows).
- Reinstall the SCEP profile to get new certificates.
Admin does not see the option to generate a recovery PIN
- Validate that the Administrator account has the required permission as mentioned in Prerequisites.
- If using a custom admin role, the Generate device recovery PIN permission is required.

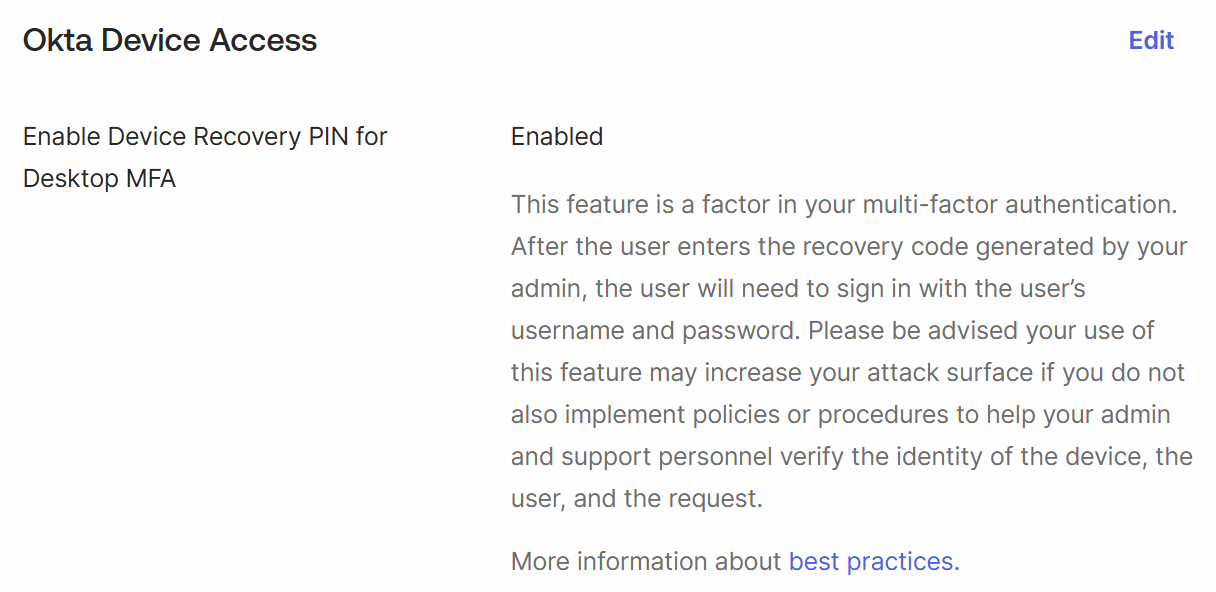

- Ensure that Enable Device Recovery PIN for Desktop MFA is set to Enabled. In the Okta admin console, navigate to Security > General.
