This guide will teach how to use and test the List – Pluck card.
- Workflows
Creating a sub-list with the Pluck card
The List – Pluck card takes a list of objects and a key and produces a sub-list. It does that by using the key to pluck the key values. These values become the sub-list.
The following are several examples.
The input list is:
[
{
"product": "apple"
},
{
"product": "tuna"
},
{
"product": "bell peppers"
},
{
"product": "milk"
}
]The key is product. After pluck, the resulting sub-list is:
["apple","tuna","bell peppers","milk"]The following example uses a similar list:
[
{
"product": "apple",
"type": "fruit"
},
{
"product": "tuna",
"type": "fish"
},
{
"product": "bell peppers",
"type": "vegetable"
},
{
"product": "milk",
"type": "dairy"
}
]The key is product. After pluck, the resulting sub-list is the same:
["apple","tuna","bell peppers","milk"]The next example shows a more complex JSON list:
[
{
"properties": {
"sheetId": 0,
"title": "Sheet1",
"index": 0,
"sheetType": "GRID",
"gridProperties": {
"rowCount": 1000,
"columnCount": 20
}
}
},
{
"properties": {
"sheetId": 317732887,
"title": "Sheet2",
"index": 1,
"sheetType": "GRID",
"gridProperties": {
"rowCount": 1010,
"columnCount": 15
}
}
},
{
"properties": {
"sheetId": 2125125274,
"title": "Sheet3",
"index": 2,
"sheetType": "GRID",
"gridProperties": {
"rowCount": 1500,
"columnCount": 22
}
}
},
{
"properties": {
"sheetId": 144976084,
"title": "Sheet4",
"index": 3,
"sheetType": "GRID",
"gridProperties": {
"rowCount": 900,
"columnCount": 10
}
}
},
{
"properties": {
"sheetId": 1179906118,
"title": "Sheet5",
"index": 4,
"sheetType": "GRID",
"gridProperties": {
"rowCount": 1300,
"columnCount": 8
}
}
},
{
"properties": {
"sheetId": 1615383701,
"title": "Sheet6",
"index": 5,
"sheetType": "GRID",
"gridProperties": {
"rowCount": 2000,
"columnCount": 30
}
}
},
{
"properties": {
"sheetId": 561243345,
"title": "Sheet7",
"index": 6,
"sheetType": "GRID",
"gridProperties": {
"rowCount": 500,
"columnCount": 5
}
}
}
]The key can be dot-delimited. Using the properties.gridProperties for key, the card creates the following list:
[
{
"rowCount": 1000,
"columnCount": 20
},
{
"rowCount": 1010,
"columnCount": 15
},
{
"rowCount": 1500,
"columnCount": 22
},
{
"rowCount": 900,
"columnCount": 10
},
{
"rowCount": 1300,
"columnCount": 8
},
{
"rowCount": 2000,
"columnCount": 30
},
{
"rowCount": 500,
"columnCount": 5
}
]Testing the Pluck card
There are several options for testing the Pluck card.

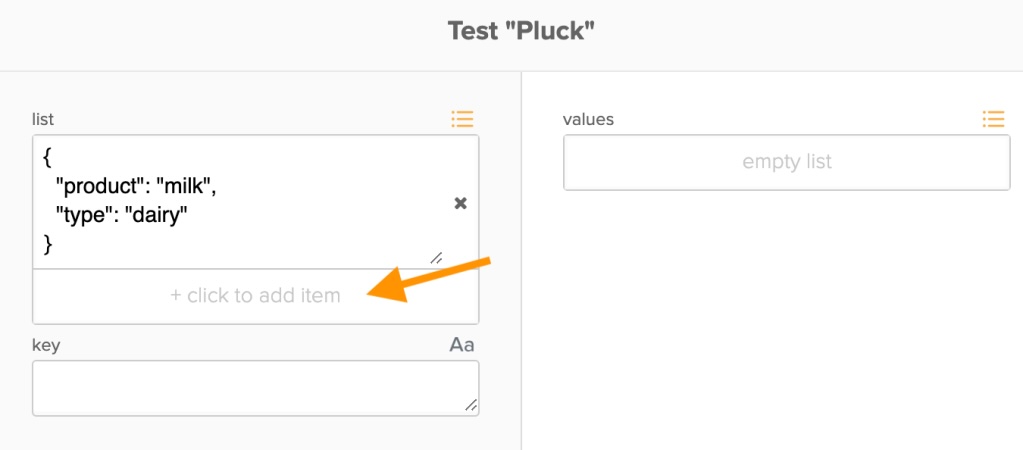

The first option is to enter each list item directly when testing. Click the row and enter a list item:

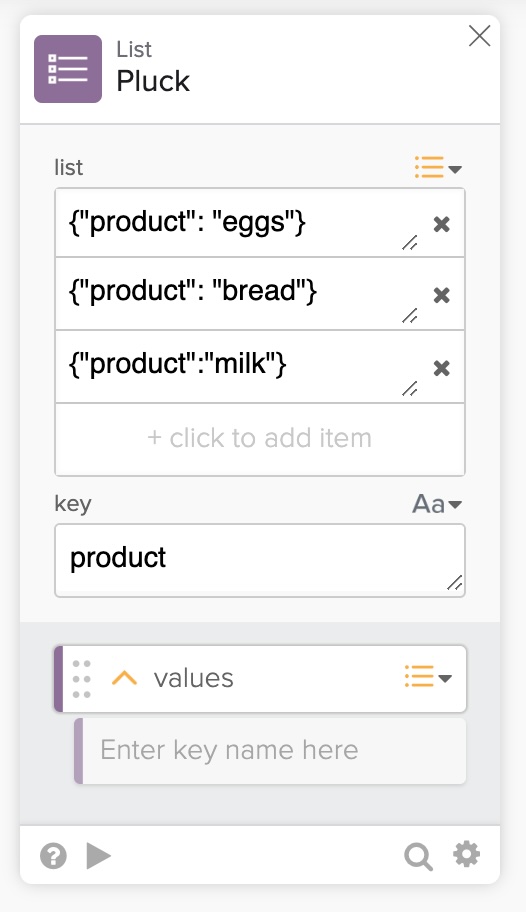

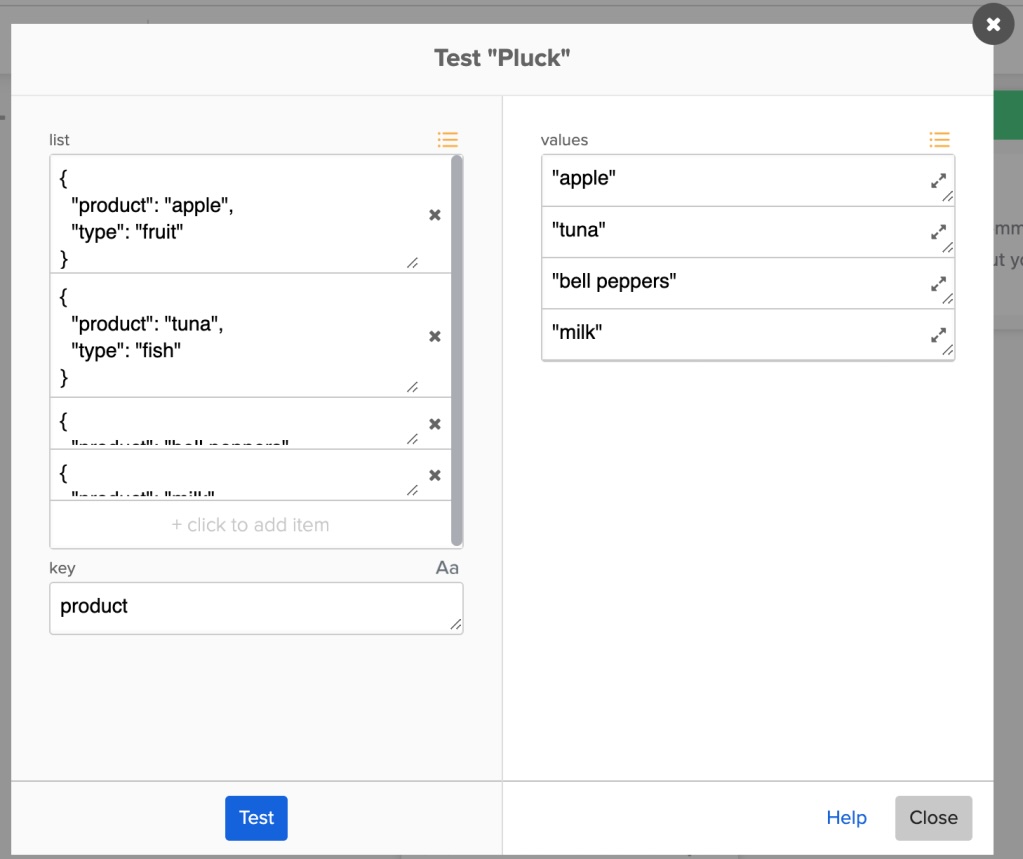

Testing the Pluck card with four items list:
This approach works but can be time-consuming if the list is complex or extensive.

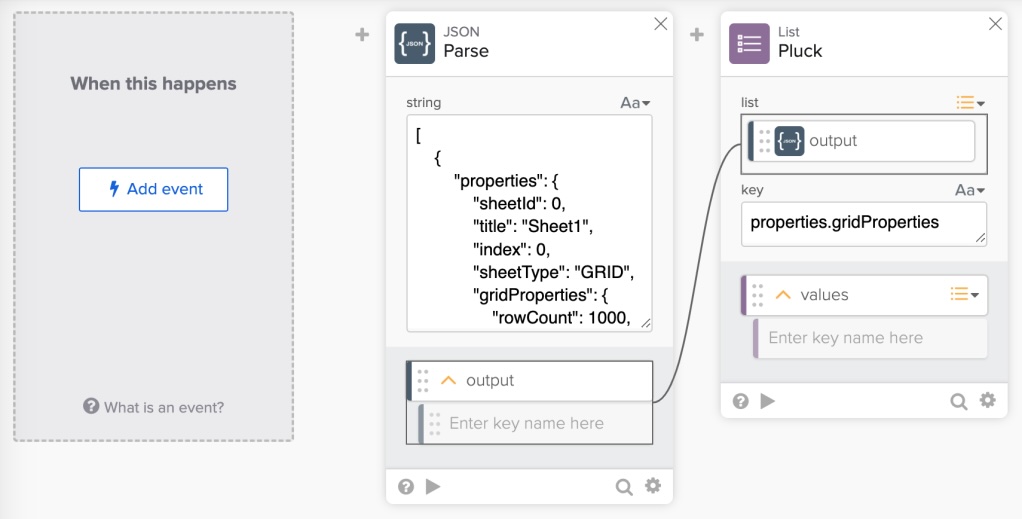

Test the entire flow for quick testing. Use the JSON – Parse card to create a JSON list and pass it to the Pluck card. Then, test the flow.

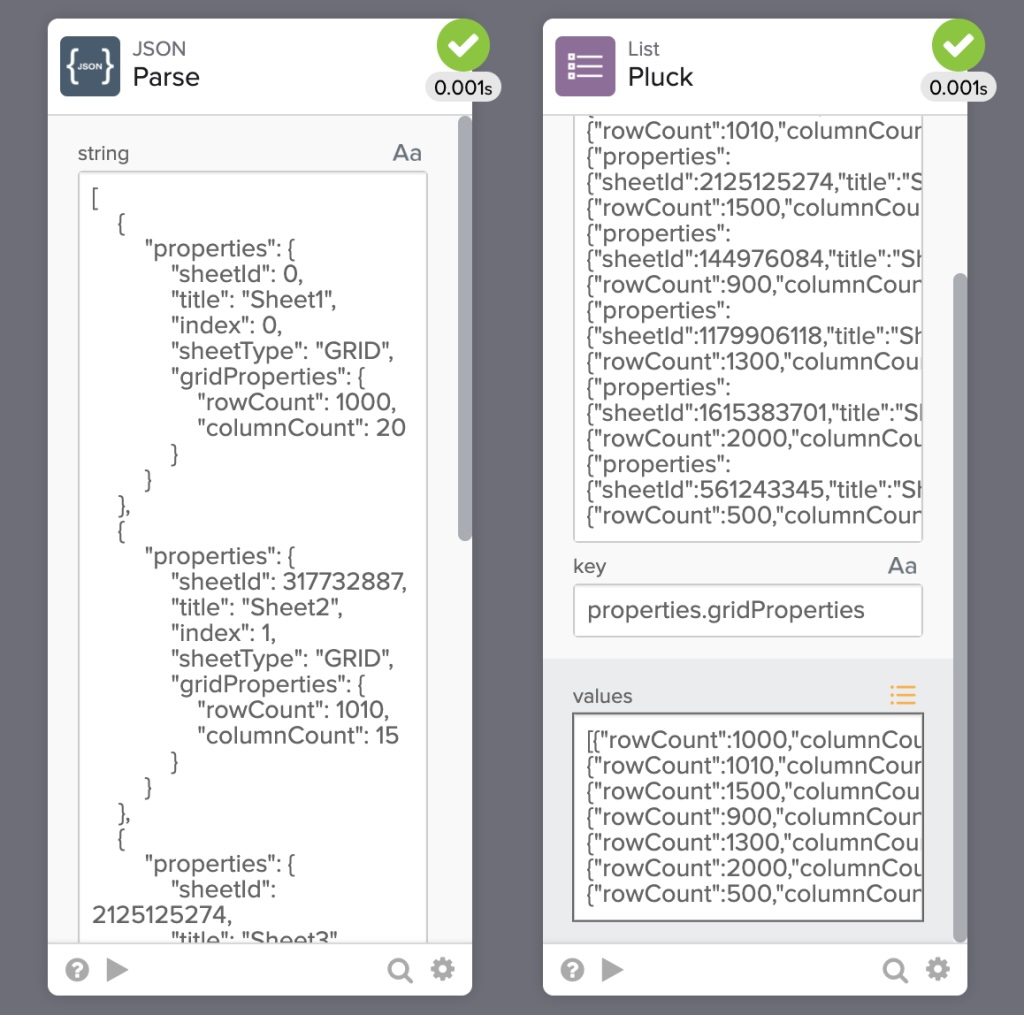

Execution history shows the Pluck card result:
