A flow can call another flow, called a helper flow. When the helper flow completes, it can return values to the main flow. This guide explains how to set up a helper flow to return values.
- Okta Workflows
Helper flow inputs
The helper flow sets the input fields on the Call Flow card. The helper flow has two inputs:
- input1_number
- input2_number

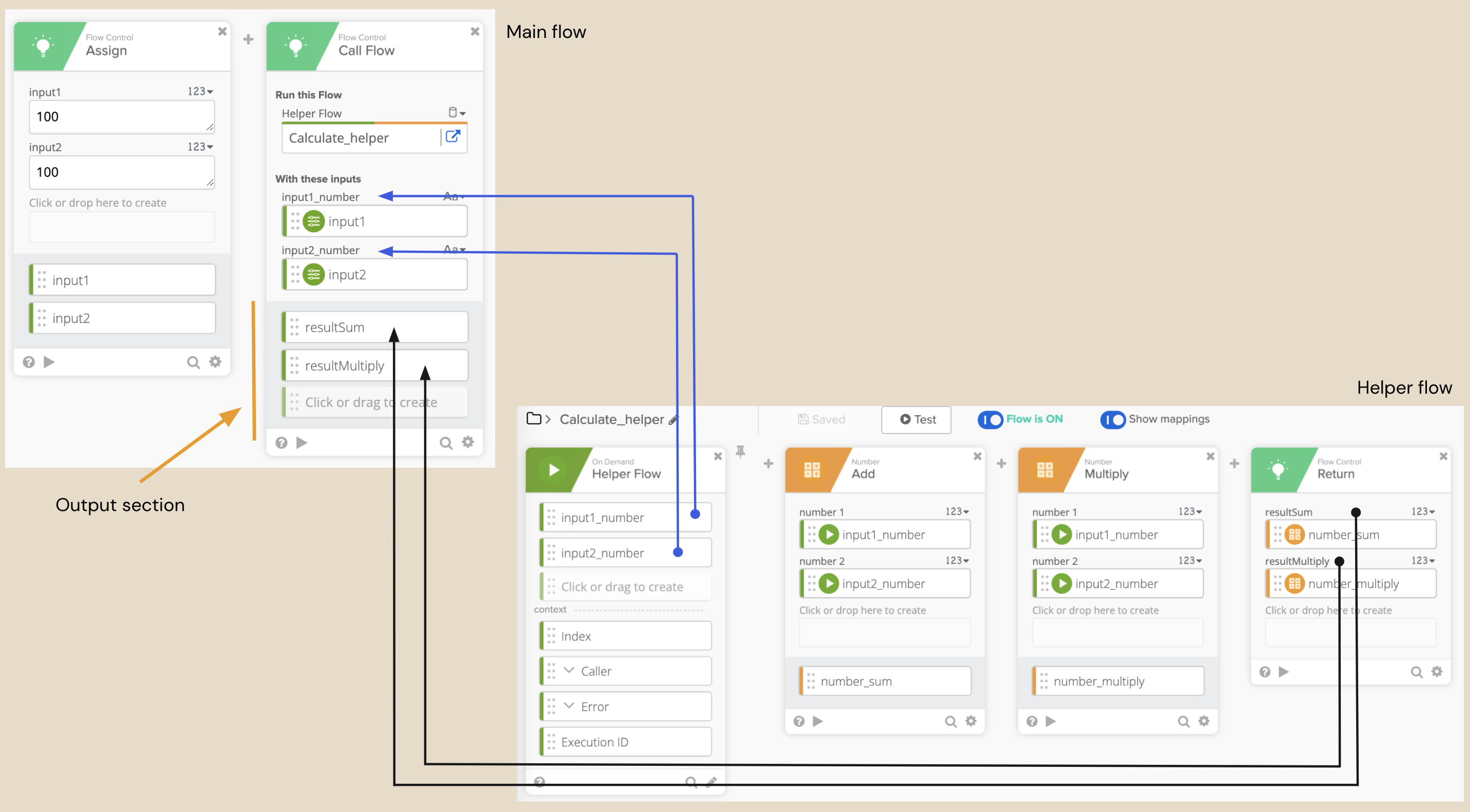

When a helper flow is selected on the Call Flow card, the input field names (input1_number, input2_number) are populated from the helper flow. The blue lines show this.
Helper flow outputs
To set up helper flow return values, the names of the fields in the output section on the Call Flow card need to match exactly the names and types of the fields on the Return card in the helper flow. The black lines show that.
In this example, the Return card has two fields: resultSum and resultMultiple. Both fields are Number types. The Call Flow card in the main flow has two fields with the same name and type in the output section.
Setting up a helper flow with return values
This is how return values are described in the Workflows documentation:
- To get values back from the helper flow, it is necessary to create output fields manually. Each output field must have the same exact name and type as the value returned from the flow. For example, if the flow called returns the two strings city and state, then the output fields on the Call Flow card must be set to string and must be named city and state.
This is another example:

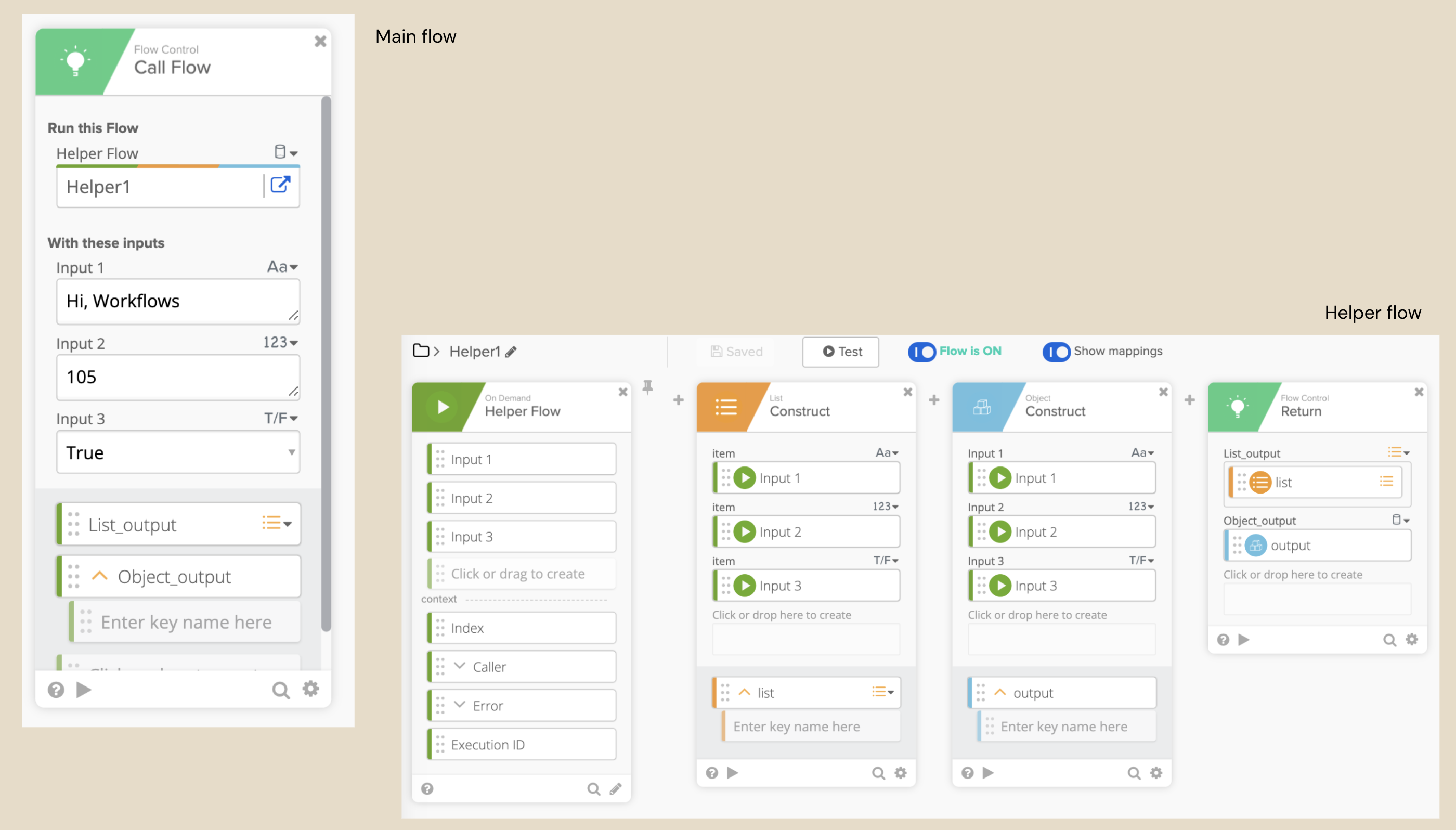

Help flow returns different field types
In the screenshot above, the Return card defines two return values:
- List_output, type List
- Object_output, type Object
Then the output fields on the Call Flow card must be set to:
- List_output, type List
- Object_output, type Object
