When troubleshooting an issue, the logs or nginx status may show an "emerg" level error referencing an issue with an application's configuration file (/etc/nginx/conf.d/icsgw_app_<uuid>.active.conf). This may also result in a UI error that the OAG configuration is "Not Valid".

This is likely due to a misconfiguration in one of the application's policies. This article describes how to identify the application using the configuration file's UUID to make the necessary fix.

Example error:

nginx: [emerg] directive "proxy_redirect" is not terminated by ";" in /etc/nginx/conf.d/icsgw_app_cca31722-eae4-4057-b802-e74c6a77d8da.active.conf:82

• Okta Access Gateway (OAG)

Either of the following options can be used to get the label from the UUID of the application:

• From the Command Line:

  1. Log in to the appliance shell.

  2. From the error message, copy the path in the error message (/etc/nginx/conf.d/icsgw_app_cca31722-eae4-4057-b802-e74c6a77d8da.active.conf) and paste it where <path> is to view the name of the application.

     sudo grep 'set $label "' <path>

     Example:

     sudo grep 'set $label "' /etc/nginx/conf.d/icsgw_app_cca31722-eae4-4057-b802-e74c6a77d8da.active.conf




• From the Browser:

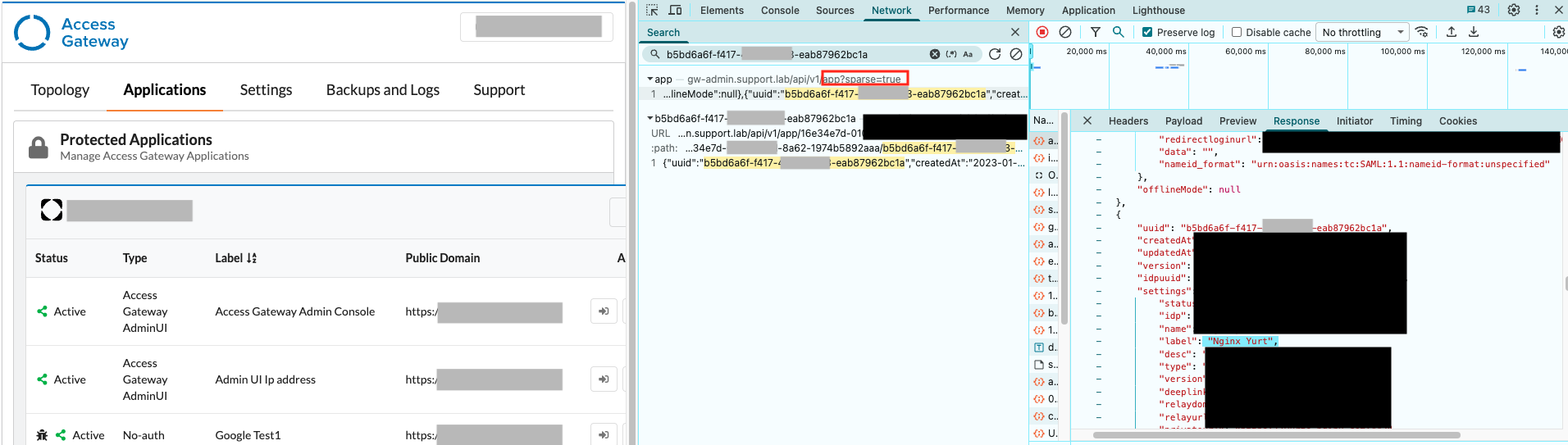

  1. Log in to the OAG UI.
  2. Open the browser's developer tools (Ctrl+Shift+I) and go to the Network tab.
  3. Navigate to the Applications page of the OAG UI.
  4. Within Developer Tools, click on the magnifying glass and search for the UUID from the error message.
     • This should return a match for the response from an "app?sparse=true" call.
  5. Click the search result to open the response body section.
  6. Click anywhere in the response section and search (Ctrl+f) for the UUID (uuid).

     • The UUID is the first key in the application's JSON object, which also includes its label/name and other details.
