Overview

This article explains how to export Okta user groups to a CSV file and email it via Okta Workflows.

Solution

The automation has two flows:

1. List user groups: flow lists user groups, exports them into a CSV file, and emails the file.
2. Save groups to table: flow saves user groups to a table for exporting to a CSV file.

List user groups flow

The List user groups flow lists user groups, exports them to a CSV file, and emails the file.

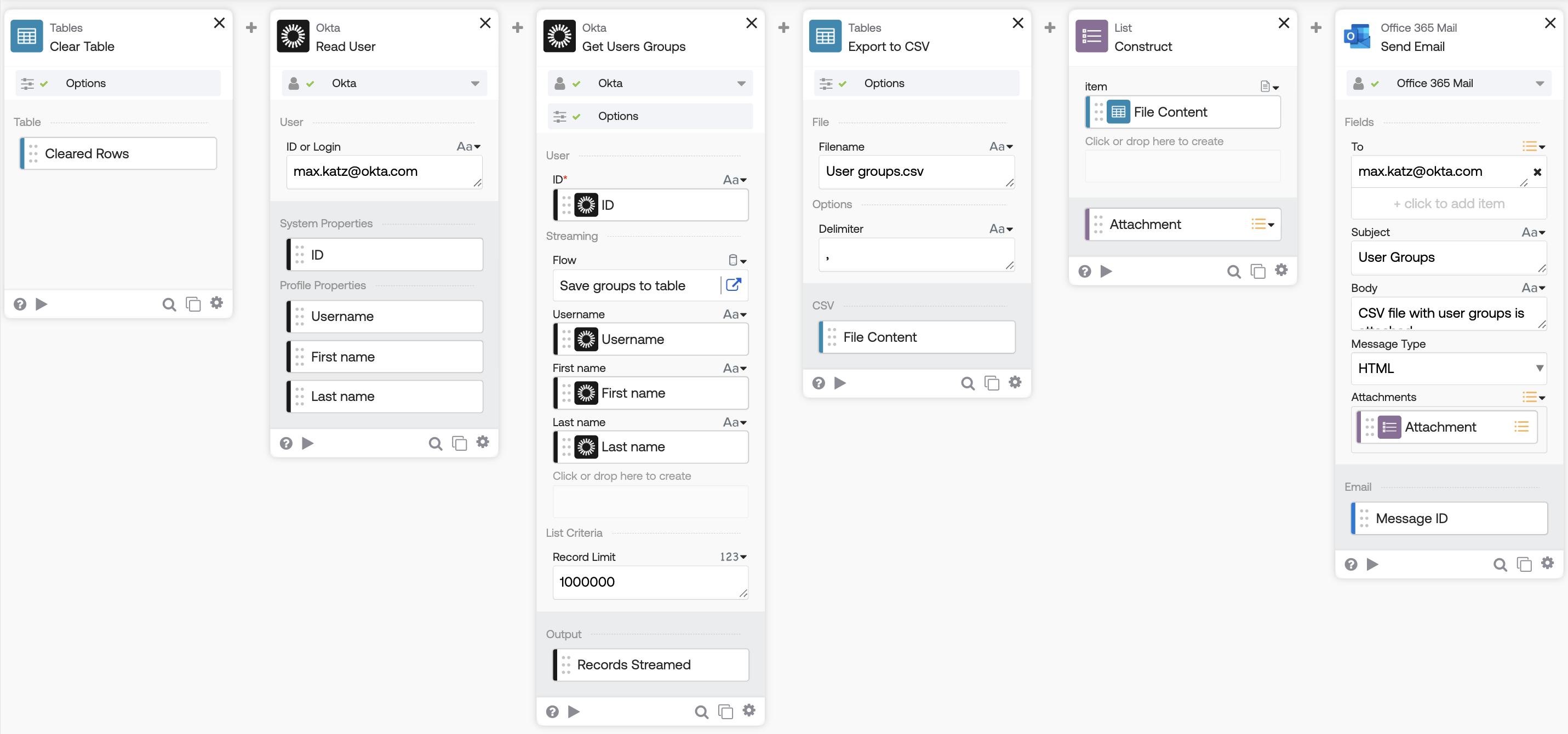

A flow to list, export as a CSV file, and email it.

How the flow works

1. The flow saves the groups into a table before exporting. The Tables-Clear Table card clears the table before each run.
2. The Okta-Read User card retrieves the user information.
3. The Okta-Get User Groups card lists all the user groups. It uses the streaming option, passing each group to a helper flow. The card also passes the static values for Username, First name, and Last name to the helper flow.
4. After the helper flows finishes processing (saving groups into a table), the Tables-Export to CSV card exports the table data to a CSV file.
5. The CSV file is placed into a list using the List-Construct card. The Office 365 Mail connector requires the attachment to be in a list.
6. The Office 365 Mail-Send Email attaches the file and emails it.

Save groups to table flow

The Save groups to table flow saves user groups to a table for exporting to a CSV file.

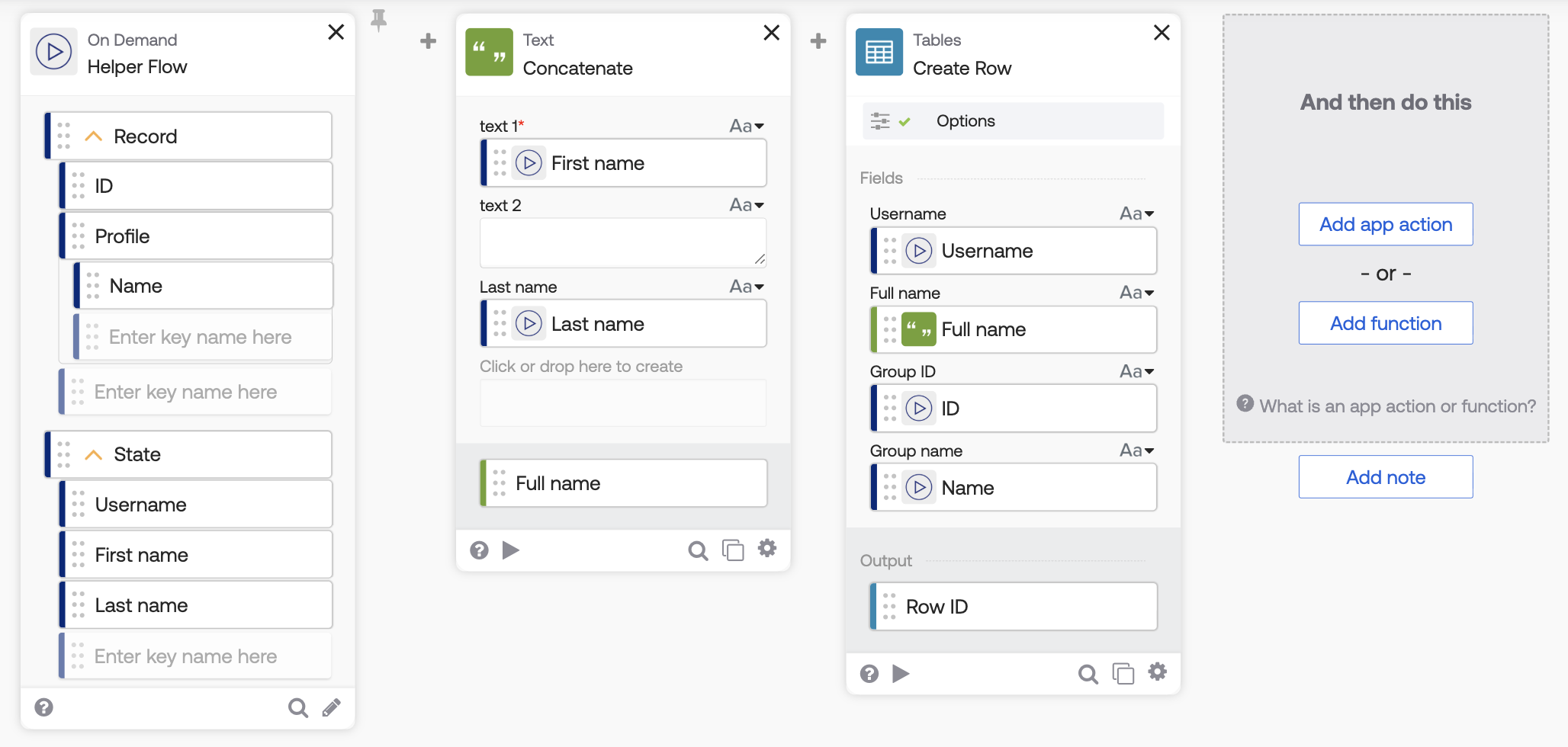

Flow to save group information into a table.

How the flow works

1. Since the main flow uses streaming, the Helper Flow sets up the Record and State fields. Learn how to stream records to a helper flow.
   • The Record object holds each group object passed from the main flow. In addition, the Record extracts two properties from the group JSON object: ID and Profile.Name instead of using the Object-Get or Object-Get Multiple card.
   • The State object holds three static values passed from the main flow.
2. The Text-Concatenate card combines the First name and Last name.
3. The Tables-Create Row card creates a row in a table with the following information:
   • Username
   • Full name
   • Group ID
   • Group name

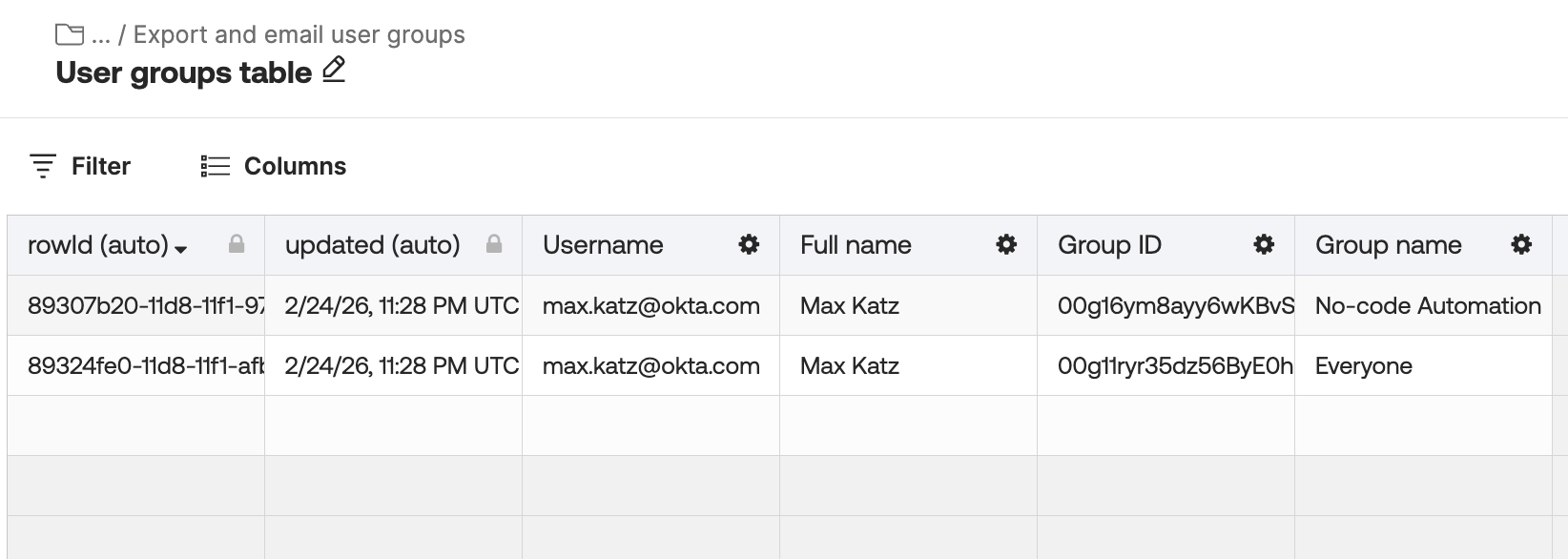

The table after running the automation:

Table with user group membership.

Email with group membership attachment

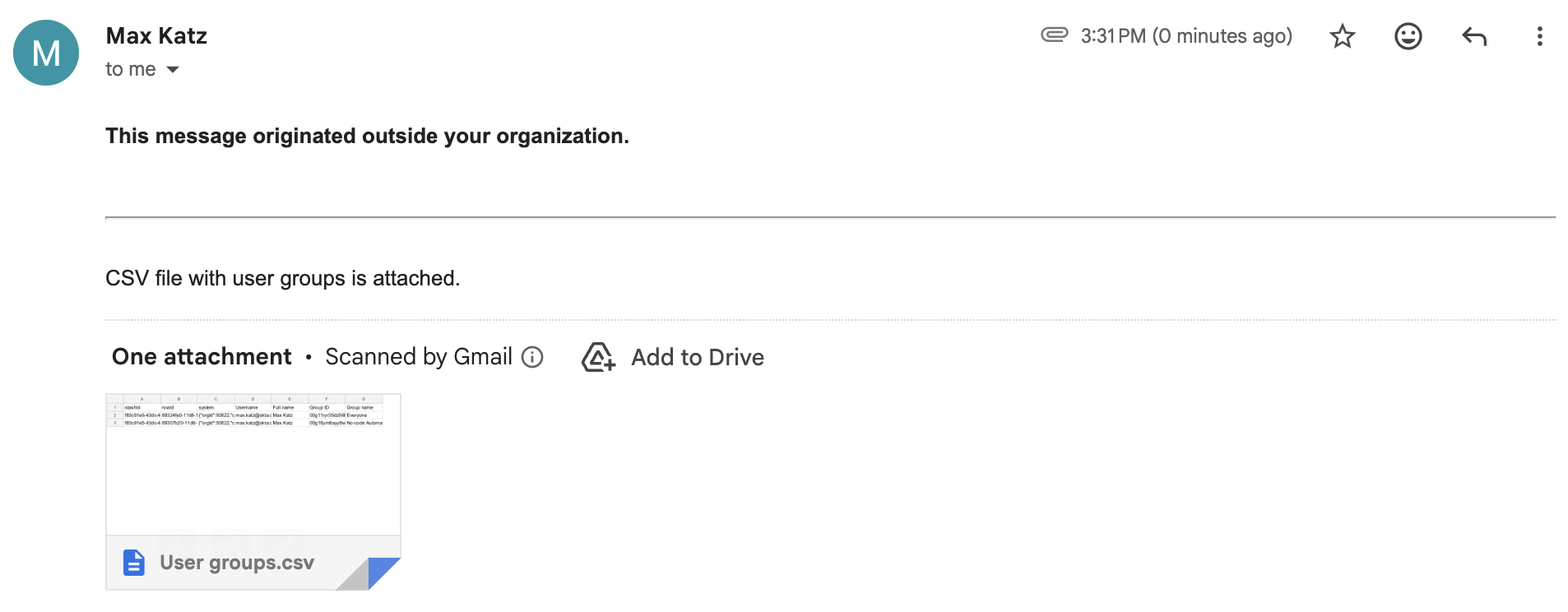

The automation sends the following email:

Email with group membership.
