The OAG monitoring log reports that an SSL Certificate has expired, and warnings are also visible in the UI. Below is a logged error message.

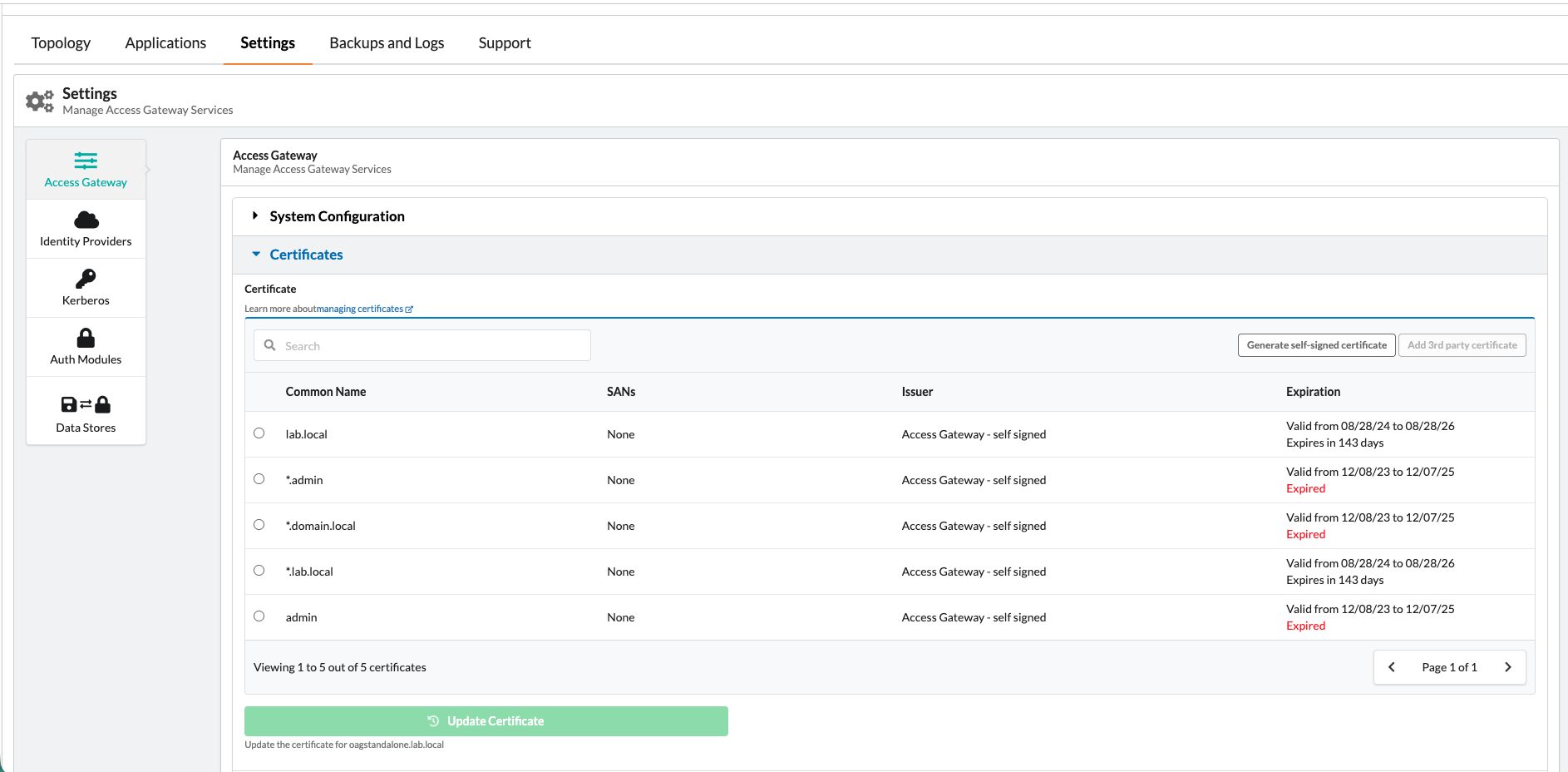

By checking certificates in OAG admin UI, there are 3 expired self signed certificates.

• Okta Access Gateway (OAG)
• User Interface (UI)

Expired localhost self-signed certificates caused the expiry message in monitoring logs. These certificates are used for initial deployment and as a fallback.

There are 5 self-signed certificates created by the system during setup and will eventually expire, and they are below:

• lab.local (Cookie domain)
• *.admin (Wildcard admin ui)
• *.domain.local (Initial setup)
• *.lab.local(Wildcard cookie domain)
• admin (Admin ui)

The *.domain.local certificate is only used for initial deployment and can be deleted. If a certificate is needed by the system but has been deleted, the system will automatically create/recreate a self-signed cert.

Delete a Certificate

1. Use a Secure Shell (SSH) connection to connect to the Access Gateway Management console. See Management Console command-line reference.
2. Press 2 to go to the Services submenu.
3. Press 1 to go to the NGINX submenu.
4. Press 6 to update a Secure Sockets Layer (SSL) certificate. The list of certificates appears.
5. Enter the number next to the corresponding certificate, and select option "d" to delete.

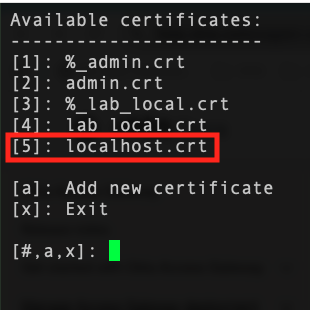

6. To delete the *.domain.local cert specify the number next to the localhost.crt (5 would be used, as shown in the screenshot).

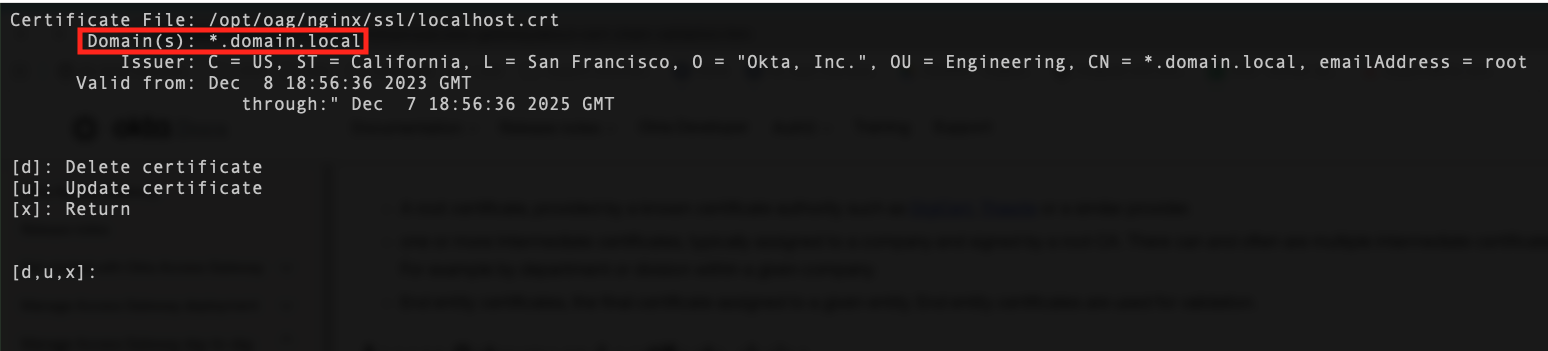

7. Once the certificate is shown, the Domain specified is *.domain.local (All certs except this one have the domain specified as the file name).


Regenerate a Certificate

If the 4 other certificates need to be regenerated, then the steps below can be followed.

1. Use a Secure Shell (SSH) connection to connect to the Access Gateway Management console. See Management Console command-line reference.
2. Press 2 to go to the Services submenu.
3. Press 1 to go to the NGINX submenu.
4. Press 5 Re-generate SSL certificate
5. Follow the prompt a * does not need to be added as a wildcard option can be specified in the next prompt, which will add one.
