The Microsoft Office 365 Application integration has been configured within Okta, utilizing WS-Federation (WS-Fed) as the designated sign-on method. Upon reviewing the Okta System Log, it was noted that Microsoft Office 365 is utilizing "SAML_1_1" as the SignOnModeType, as depicted below:




• Microsoft Office 365
• WS-Federation (WS-Fed)
• Security Assertion Markup Language (SAML)

1. Here is an overview of Office 365 WS-Fed authentication steps:
   • The Office365 application generates a Request Security Token (RST) and redirects the user to the SSO URL.
   • Okta parses the RST request and verifies the user's identity in Active Directory or other user stores.
   • Okta generates a SAML assertion inside a Request Security Token Response (RSTR) and sends it all back to the Office365 application.
   • The Office 365 application receives the RSTR response and logs the user into the application.
2. WS-Federation is a specification that defines mechanisms for transferring identity information using encrypted SOAP messages, adding an additional level of security.

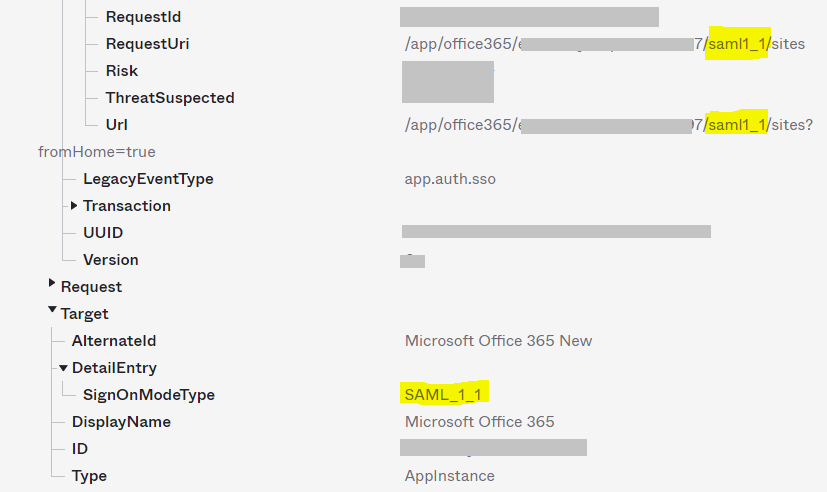

3. In the Okta System Log, see that Microsoft Office 365 in OKTA is using SAML_1_1 as SignOnModeType.

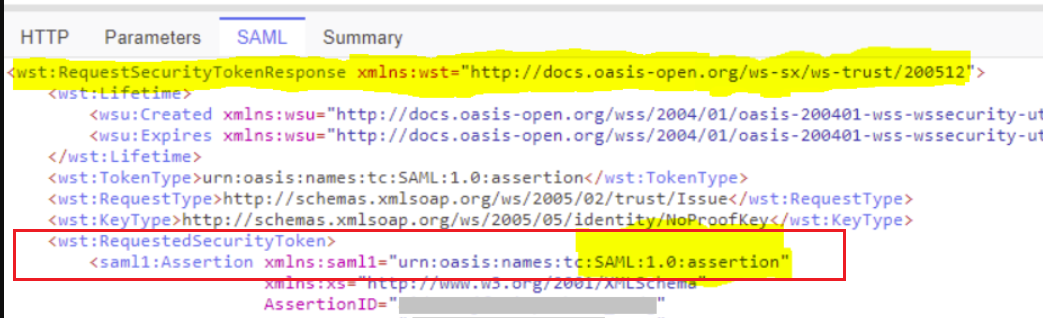

   However, it is actually a SAML 1.0 assertion inside WS-TRUST Request Security Token Response (RSTR), and it is secure.
4. Refer to the below Microsoft documentation URLs, which explain about RequestSecurityToken Class and RequestSecurityTokenResponse Class.
5. The wst:RequestSecurityTokenResponse element (message) contains the parameters and properties in the response sent by a security token service (STS) to a security token request (RST) made by a client.

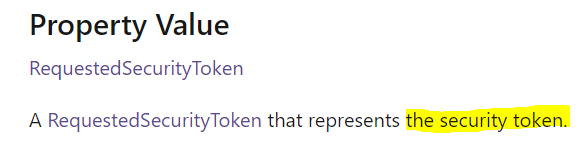

6. Request Security Token Response (RSTR) contains the RequestedSecurityToken property, which represents the security token. In this case, the security token is a SAML 1.0 assertion.

7. This SAML assertion contains a strong digital signature that protects the integrity of the whole SAML token, which is secure.

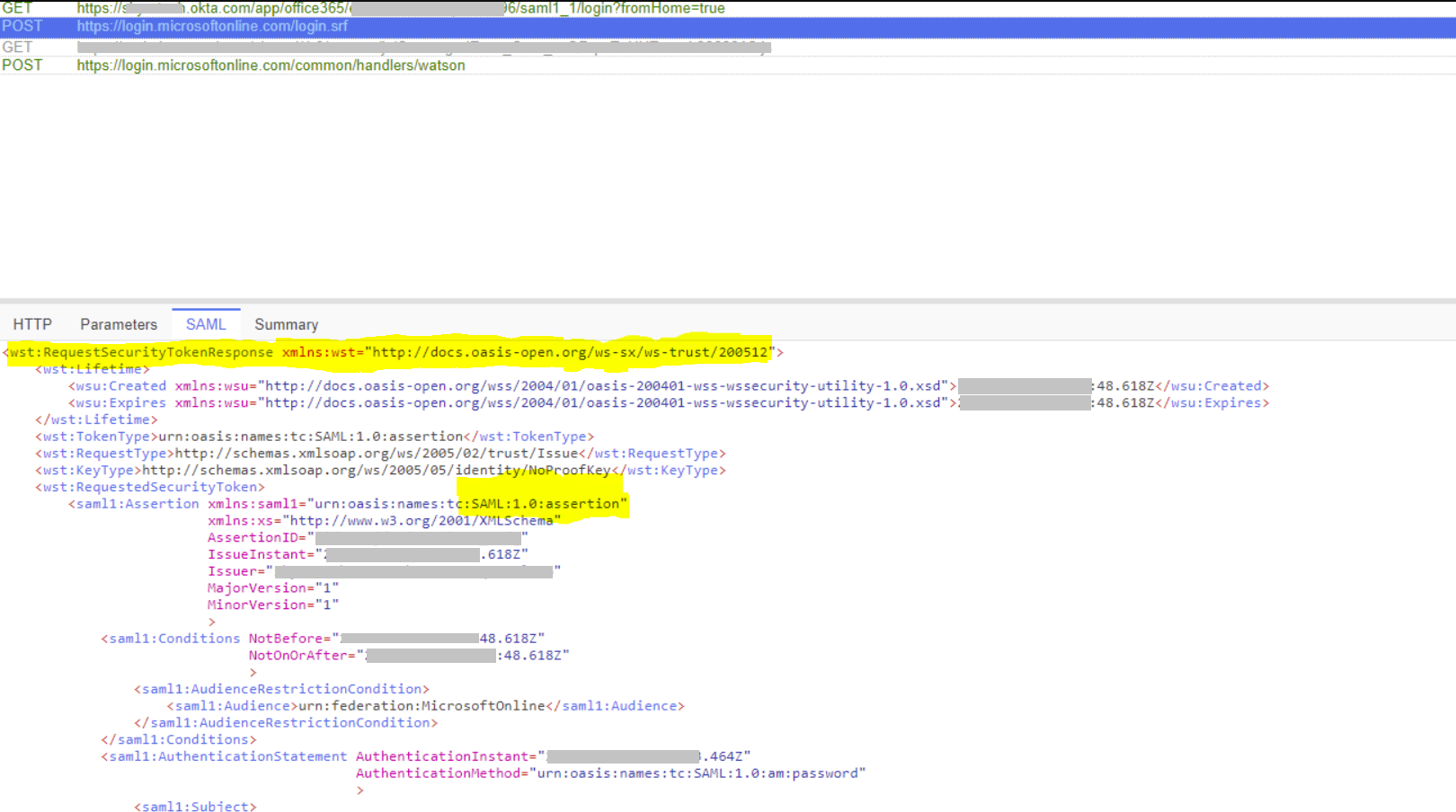

8. Please refer to the sample screenshots below of the real SAML assertion captured using the SAML tracer.
