When a user tries to click the LimbleCMMS application icon from their Okta dashboard, an error message is displayed:

403 Access Forbidden - You don't have permission to access this page


In the System Log, a specific error is visible:

User performed OIDC single sign-on to app - failure: missing_initiate_login_uri


• LimbleCMMS
• Identity Provider (IdP)
• Single Sign-On (SSO)
• IdP-initiated SSO

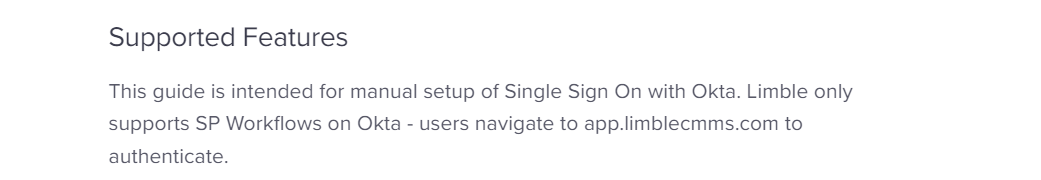

This is expected behavior. As per the Limble CMMS OIDC Okta Configuration Guide, IdP-initiated flow is not supported, and only Service Provider-initiated flow is supported.

As LimbleCMMS only supports Service Provider-initiated (SP-initiated) flow, users have to navigate to app.limblecmms.com to authenticate. A SP-initiated flow occurs when an end user attempts to sign in to an external application directly on that application's sign-in website. For example, http://app.limblecmms.com is the SSO sign-in location for the LimbleCMMS application.

To preserve the Okta user experience, use the Bookmark App integration to simulate an Identity Provider-initiated (IdP-initiated) flow. The integration can be customized to display the logo of the LimbleCMMS application.

Step 1 - Update the LimbleCMMS application integration

1. The LimbleCMMS app from the Okta App catalog will serve as the back-end connection between Okta and the SP; however, this application icon will be hidden from the end user.

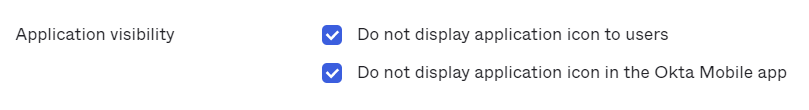

2. To hide the application icon, go to the Admin Console and navigate to Applications > LimbleCMMS > General tab > click Edit in the App Settings pane > enable both options in the Application visibility section.



Step 2 - Configure the Bookmark App integration

Add an Okta Bookmark App integration to display the LimbleCMMS application to the end user.

1. In the Admin Console, go to Applications > Applications.
2. Click Browse App Catalog.
3. In the Search... field, enter Bookmark App. Click the Bookmark App integration.
4. Click Add to create a Bookmark App instance.

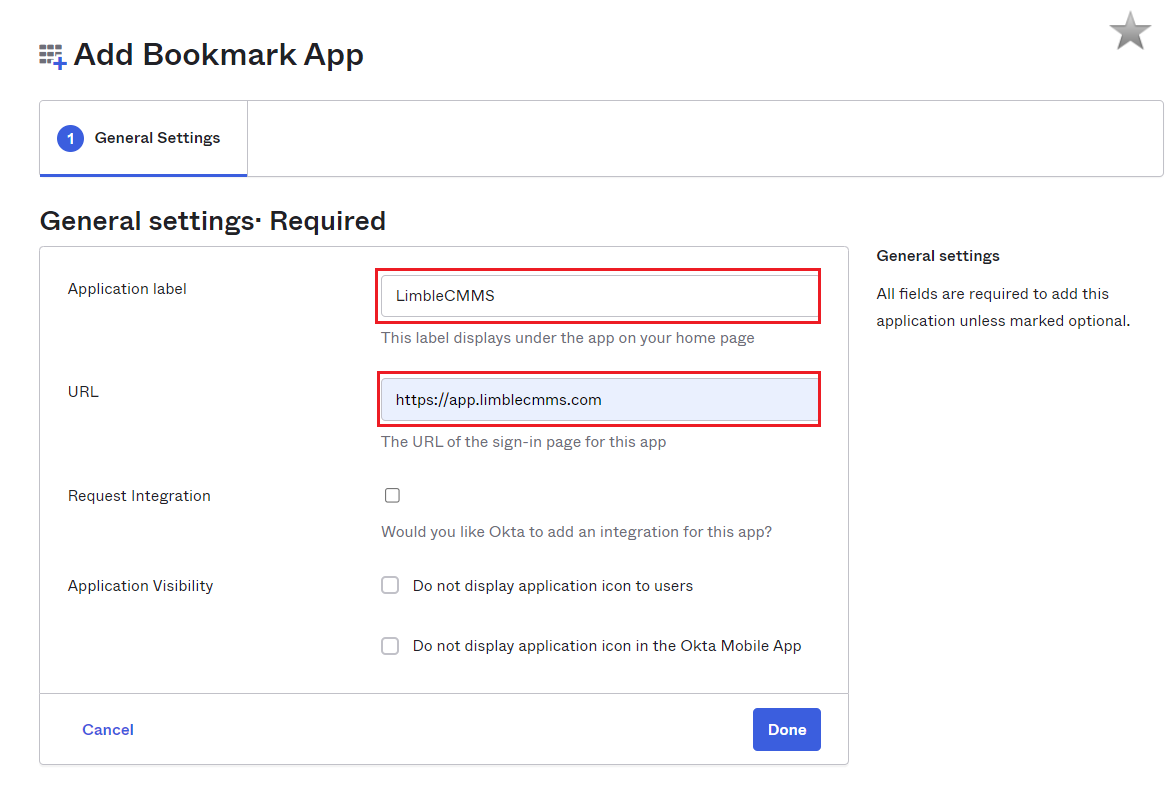

5. In the General Settings for the Bookmark App, enter the name of the application and the URL of the external site. For example, https://app.limblecmms.com.
6. This is the application icon that end-users see, so clear both Application Visibility checkboxes:

7. Click Done to create the Bookmark App.
8. Assign the app integration to the necessary users.

Step 3 - Change the bookmark application icon appearance

Add a custom logo to use as the application icon for the bookmark app integration created in task 2.

A custom logo must meet the following requirements:

• Image type must be PNG, JPG, or GIF (PNG is best)
• Image dimensions should be at least 420 pixels by 120 pixels to prevent visual scaling issues
• Image size must be less than 1 MB

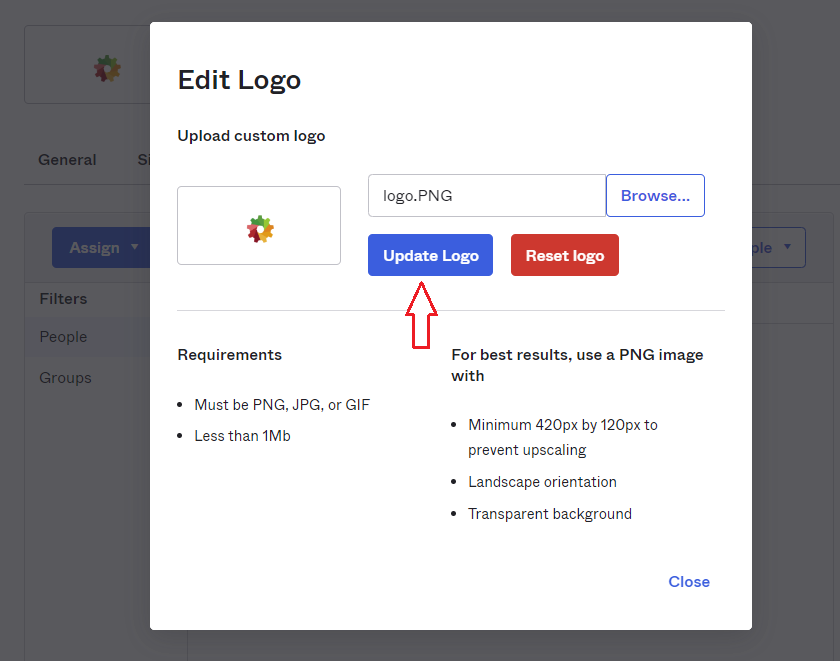

1. Click the menu icon on the logo tile, and then select Upload Custom logo.
2. In the Upload Custom Logo dialog, click Browse files... Locate and select the image to use as the application icon and click Open.
3. Click Update Logo to set the application icon.

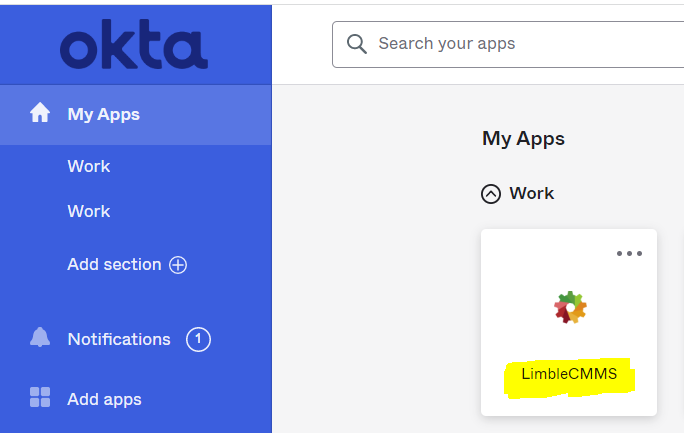

The end users now have the LimbleCMMS application icon on their desktops, which simulates the Okta IdP-initiated flow into the LimbleCMMS application.

There will be two different LimbleCMMS applications in Okta:

NOTE: The Bookmark App integration does not support provisioning features.

Related References

• Limble CMMS OIDC Okta Configuration Guide
• Simulate an IdP-initiated flow with the Bookmark App
