• Okta Access Gateway (OAG)
• High Availability

To view the worker nodes on the admin, there are three options:

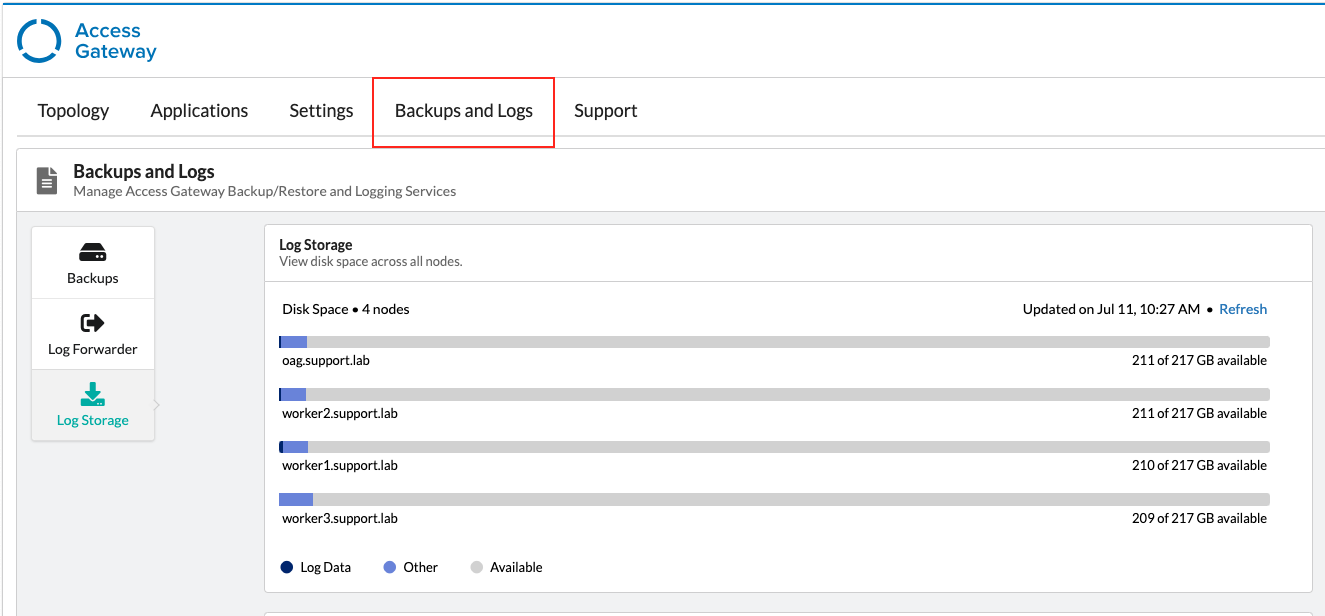

1. From the Admin UI Log storage view :

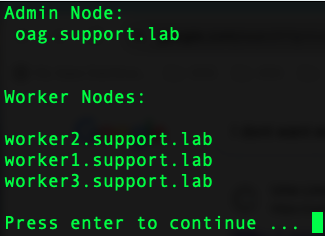

2. From the high availability option > "4. List nodes" through the management console:

   ​​

3.  Cluster node details can also be found in file "/opt/oag/configs/events/config/ha_configuration.config" on any (admin or worker) node. The below command can be used to list admin and worker(destination) nodes:

• Login to the appliance shell and execute the command below:

grep -E "ha_admin_node|ha_destination_nodes" /opt/oag/configs/events/config/ha_configuration.config

• The following example output shows the admin node (oag.support.lab) and three worker nodes (worker1.support.lab, worker2.support.lab, and worker3.support.lab):

[0] oag-local@oag.support.lab;/home/oag-local# grep -E "ha_admin_node|ha_destination_nodes" /opt/oag/configs/events/config/ha_configuration.config
ha_admin_node = oag.support.lab
ha_destination_nodes = worker2.support.lab,worker1.support.lab,worker3.support.lab
