There are six ways to trigger a flow. They are:
- Schedule (flow runs periodically)
- Event (flow is called when a particular event is fired)
- Manual (clicking the Test button)
- API endpoint (another system invokes a flow via an API endpoint)
- Helper flow (flow calling another flow)
- Delegated flow (let someone else in the organization invoke it)
- Okta Workflows
- Schedule flow (runs periodically)
A flow can be scheduled to run periodically. For example, schedule a flow to run every hour, every day, or once a week (there are other options also).

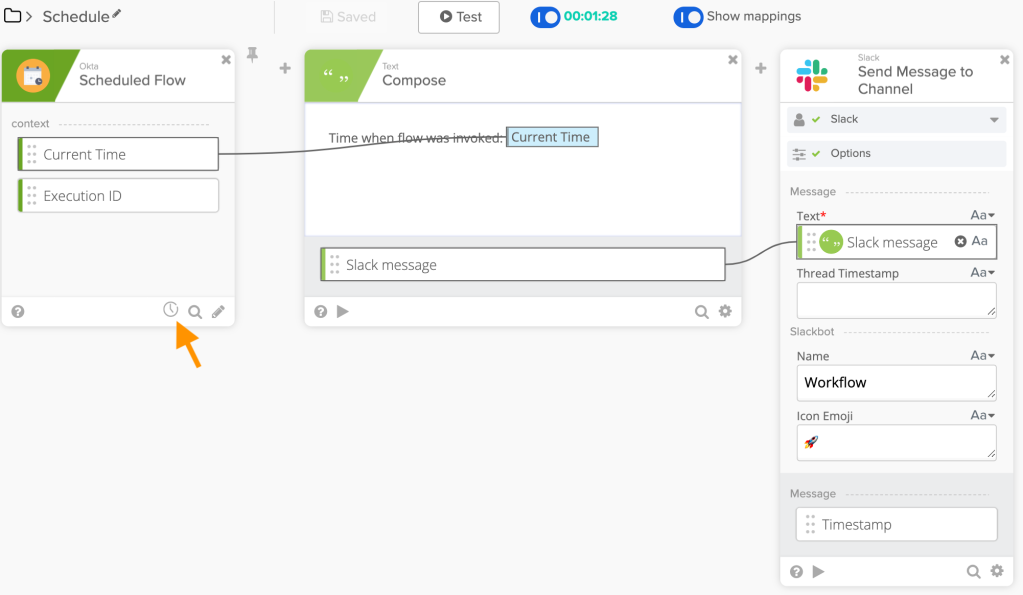

To schedule a flow, add the Schedule event:
To configure the schedule, click the clock icon (🕔) at the bottom of the card:

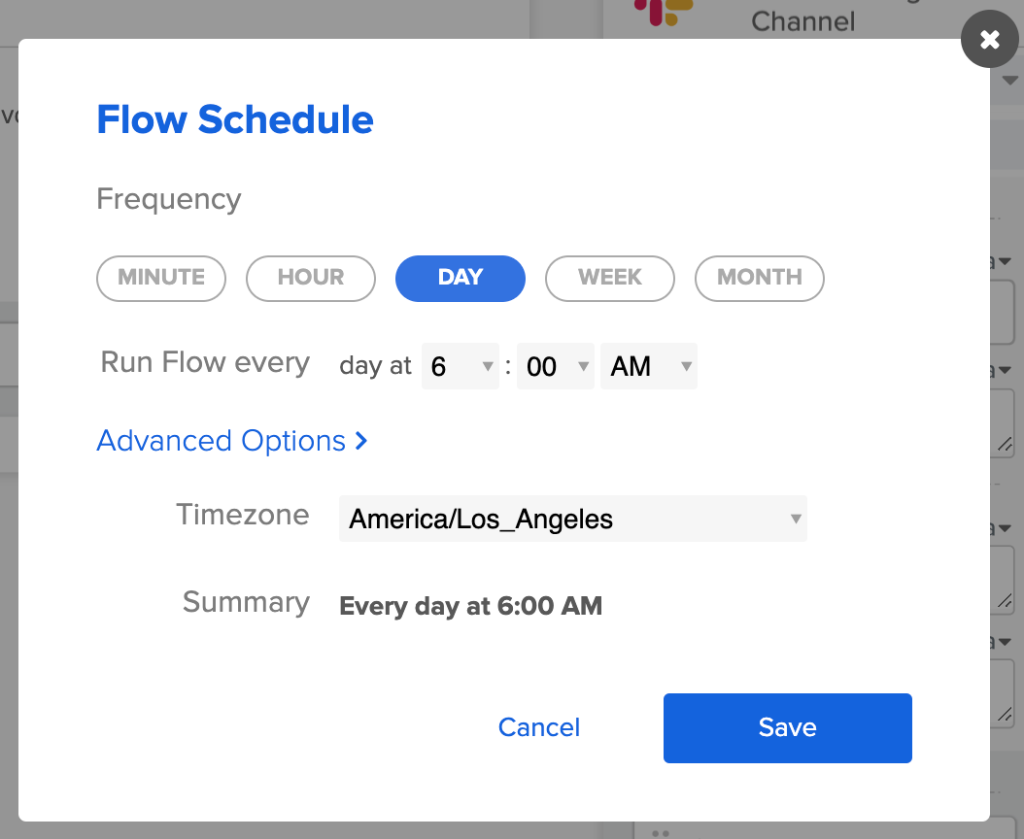

Options to configure when to run a flow:
- Event flow (is called when a particular event is fired)

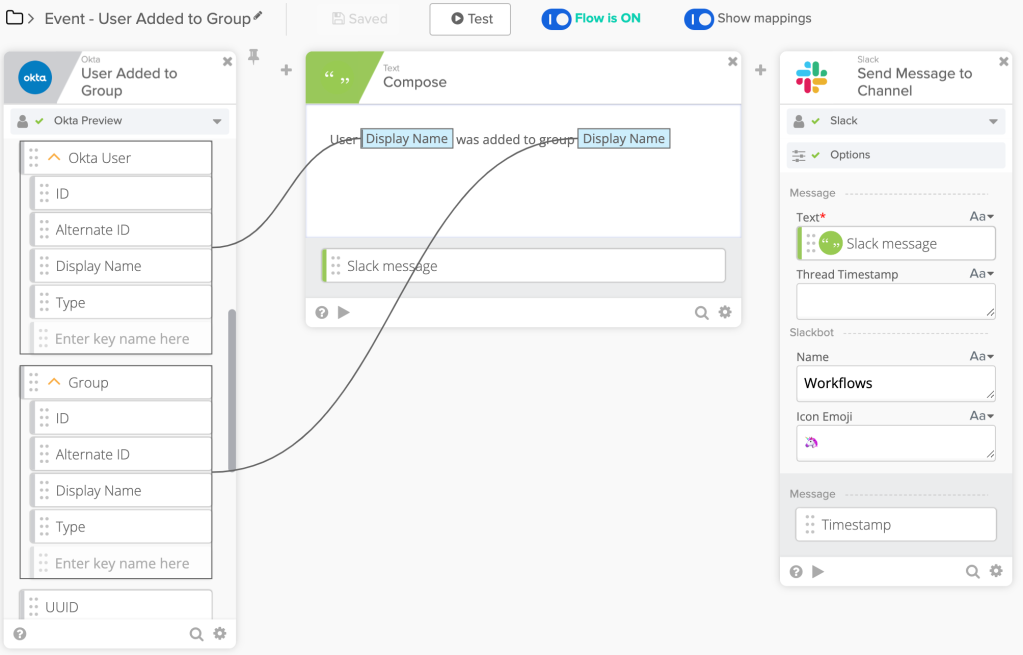

Another way to trigger a flow is when a particular event occurs in an organization. For example, this flow will run when a user is added to a group:

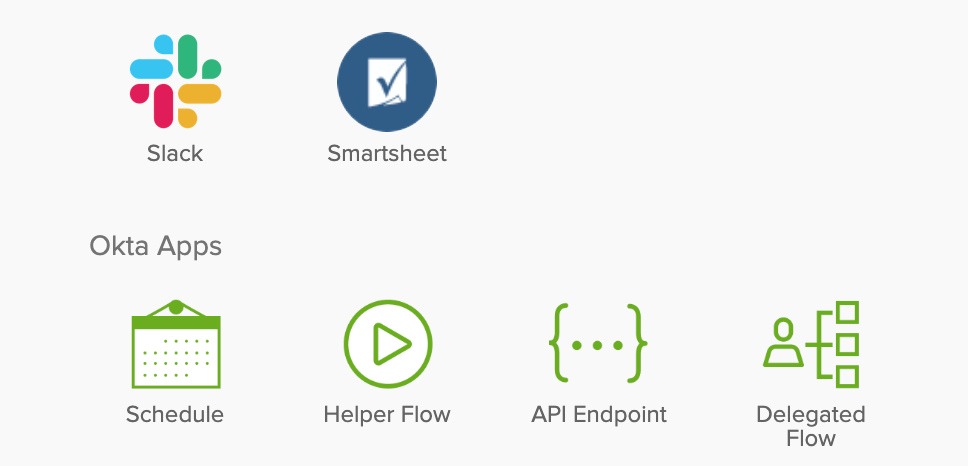

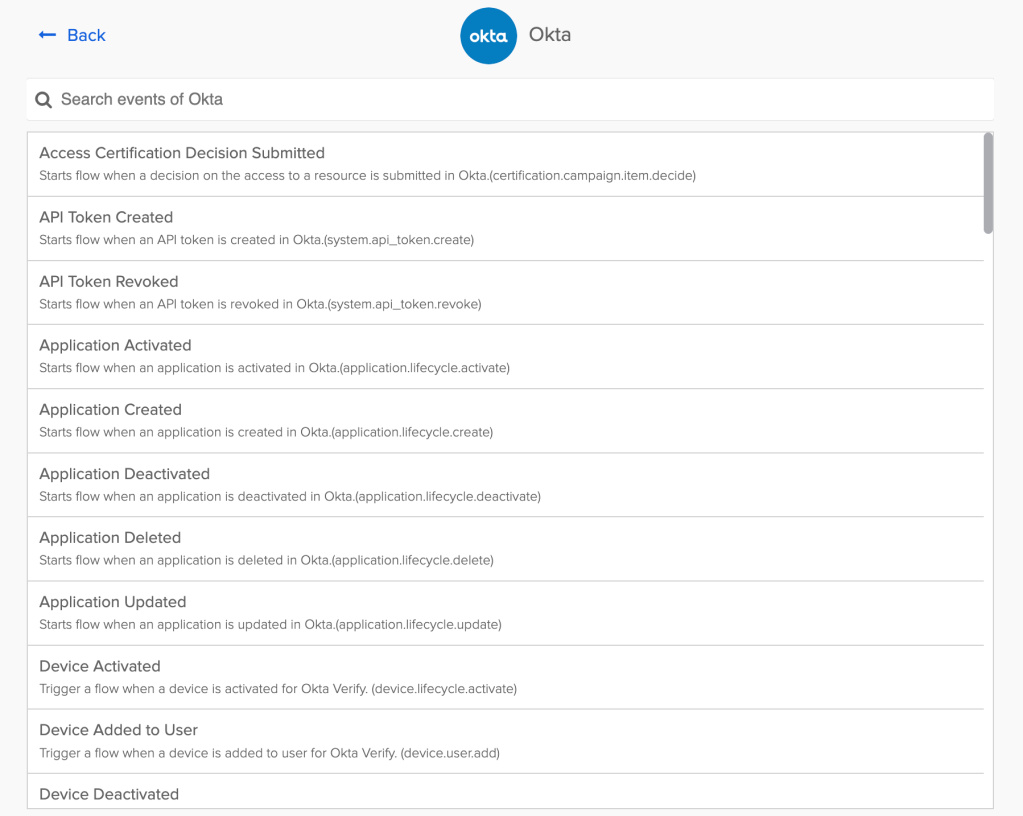

Every connector supports different events:
- Manual (clicking the Test button)

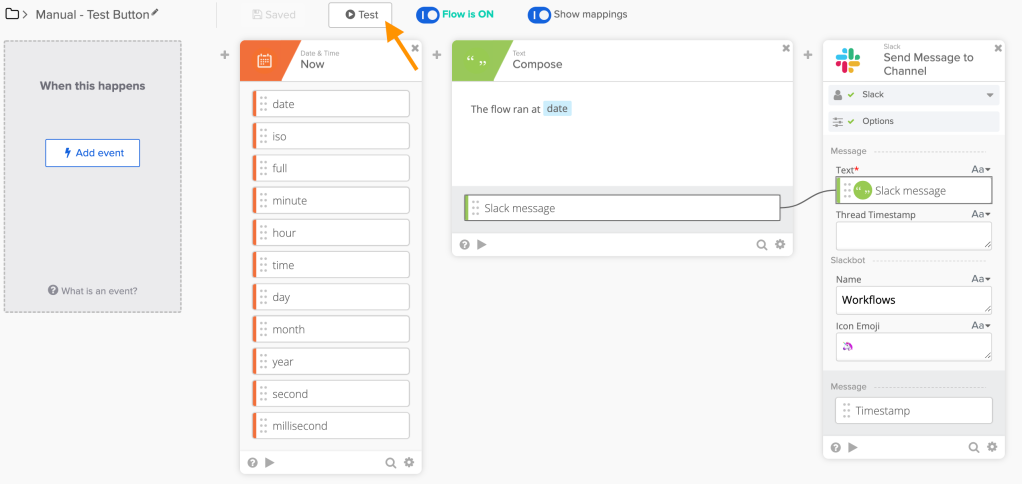

If a flow needs to run manually, infrequently, or just once, use the Test button to trigger it. Even though it says Test, this is a perfectly fine way to run a flow.
When manually running a flow, there is no need to have an event card set (1st card).
- As an API endpoint (another system invokes a flow via an API endpoint)
It is possible to trigger a flow from an external system via an API endpoint. For example, an event occurs in an external system, which makes a call to an API endpoint that triggers a flow.

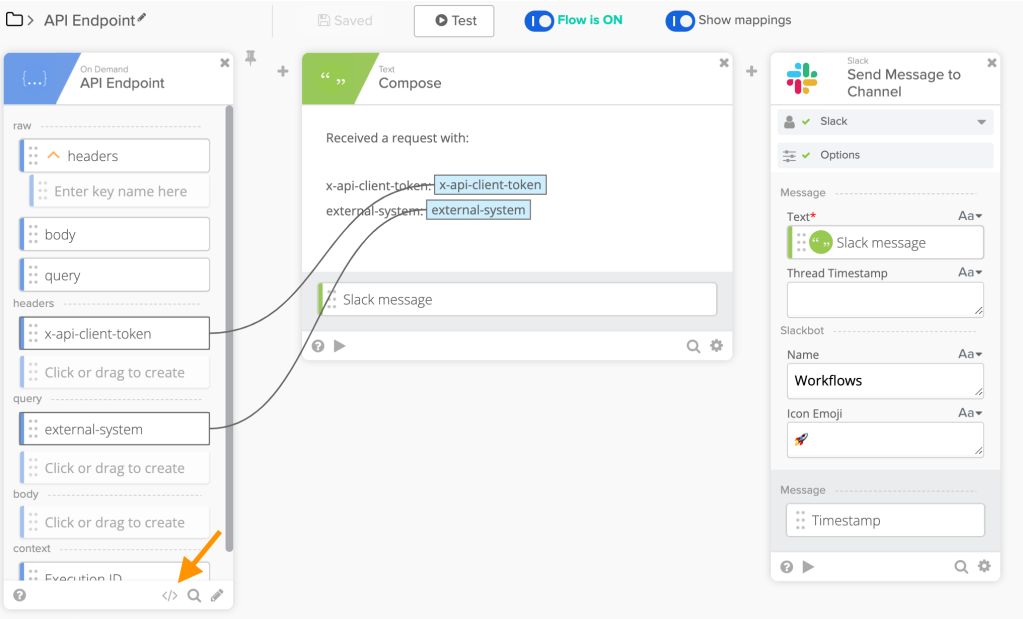

To trigger a flow via an API endpoint, use the API Endpoint event card:

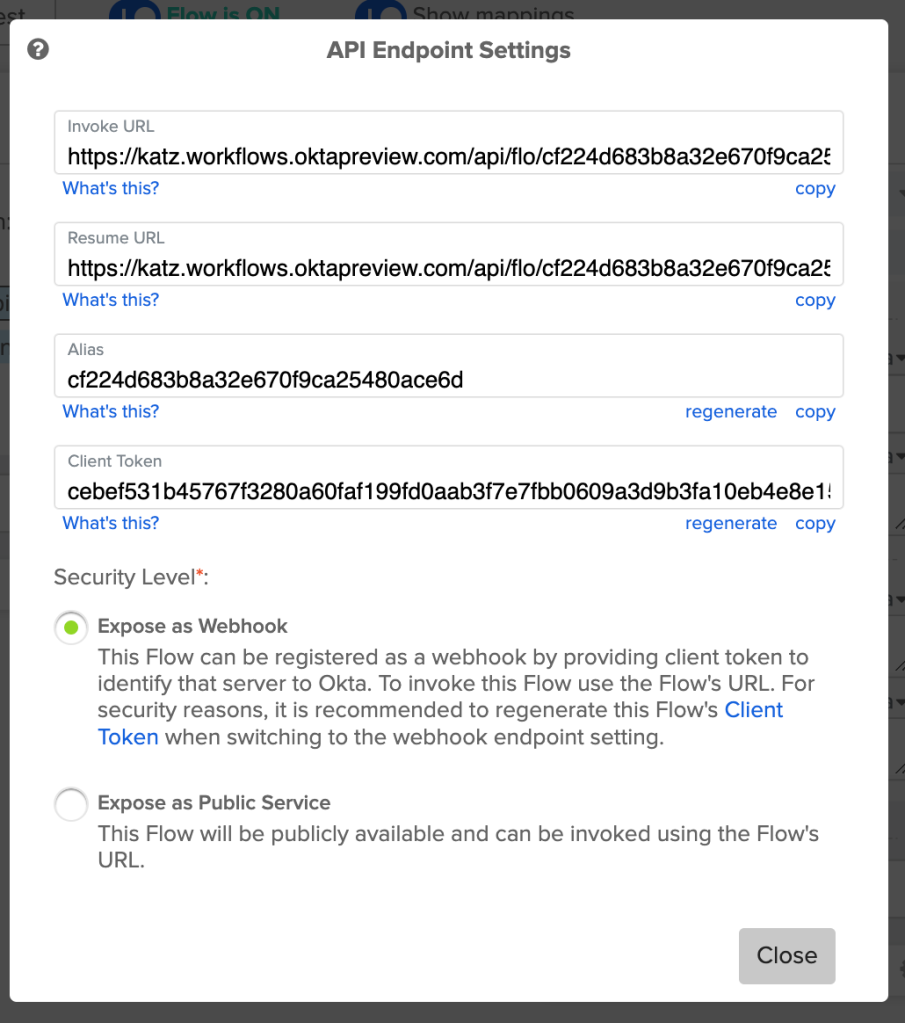

The API endpoint information is available by clicking the </> icon at the bottom of the card.
To test an API endpoint, use a service such as Postman.
- Helper flow (flow calling another flow)
A helper flow is a flow that is called from another flow. A helper flow is usually used when there is a list of objects (users, groups, etc.), and a need to iterate over each item in a list to perform an action.

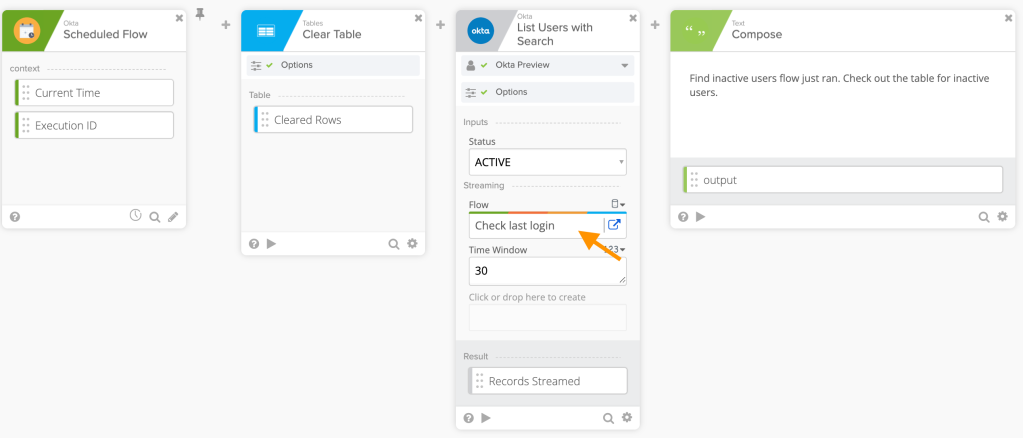

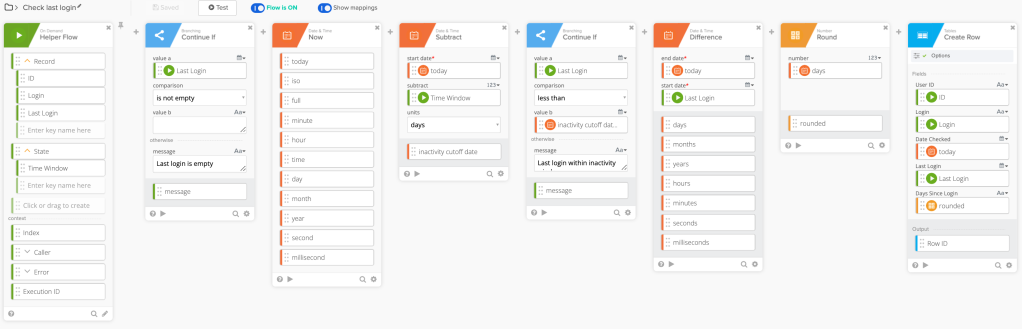

In this example, a flow named Check last login will be called for each user found with the List Users with Search card:
Helper flow is called for each item in a list:
A flow becomes a helper flow when using the On Demand – Helper Flow event card:

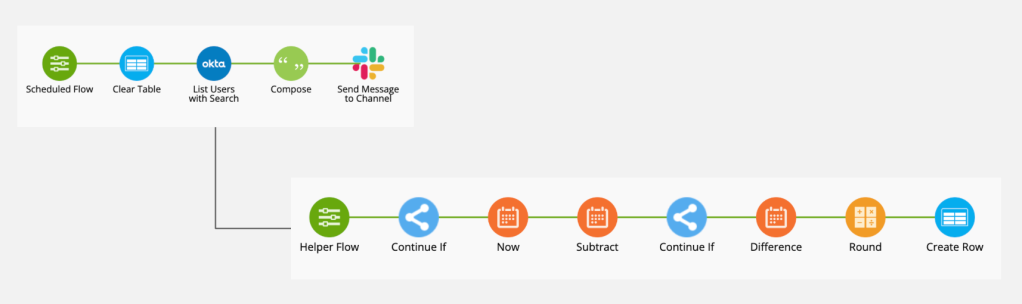

Flow chart view of the main flow and helper flow:
- Delegated Flow (let someone else in the organization invoke it)
A delegated flow is when another user is delegated to run a flow. That person might not be an administrator but needs to be able to trigger a particular flow.

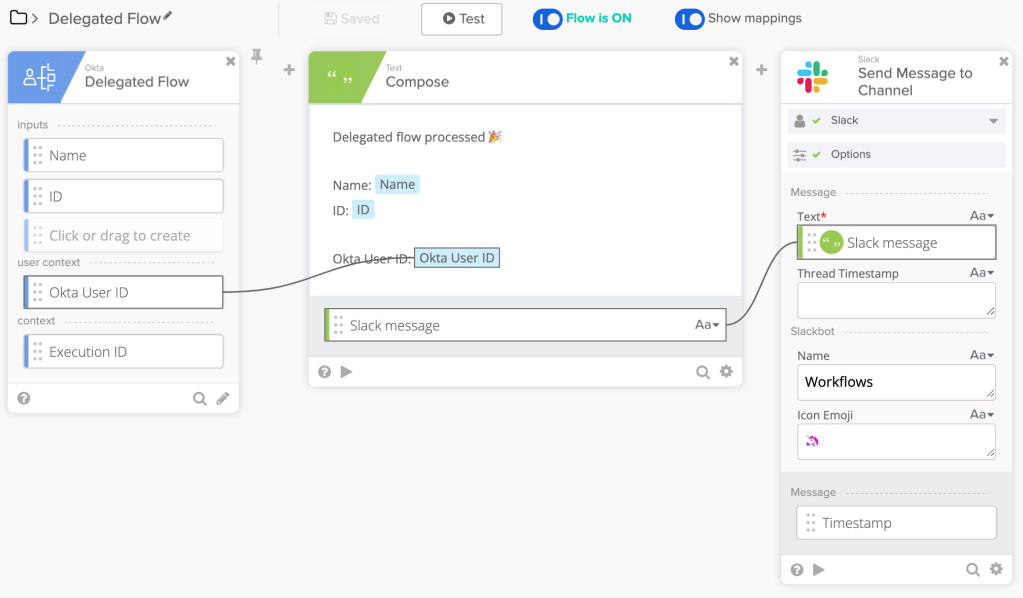

To make a delegated flow, add a Delegated Flow event card:
A delegated flow event card can define one or more inputs. In the screenshot below, the flow has two inputs: Name and ID.

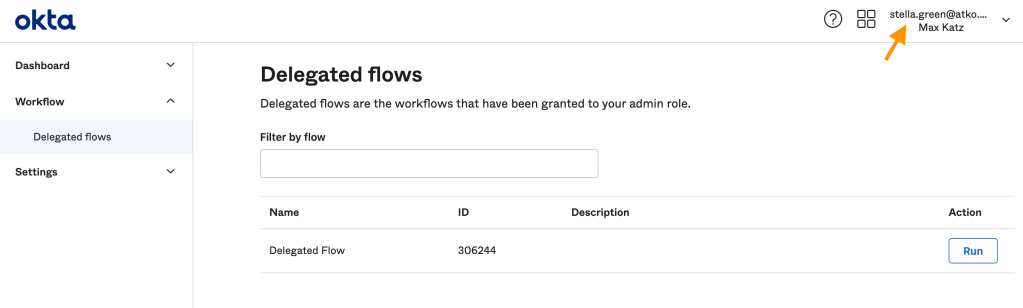

Flow execution is delegated to another user within an organization. In the screenshot below, the user stella.green can run this flow:

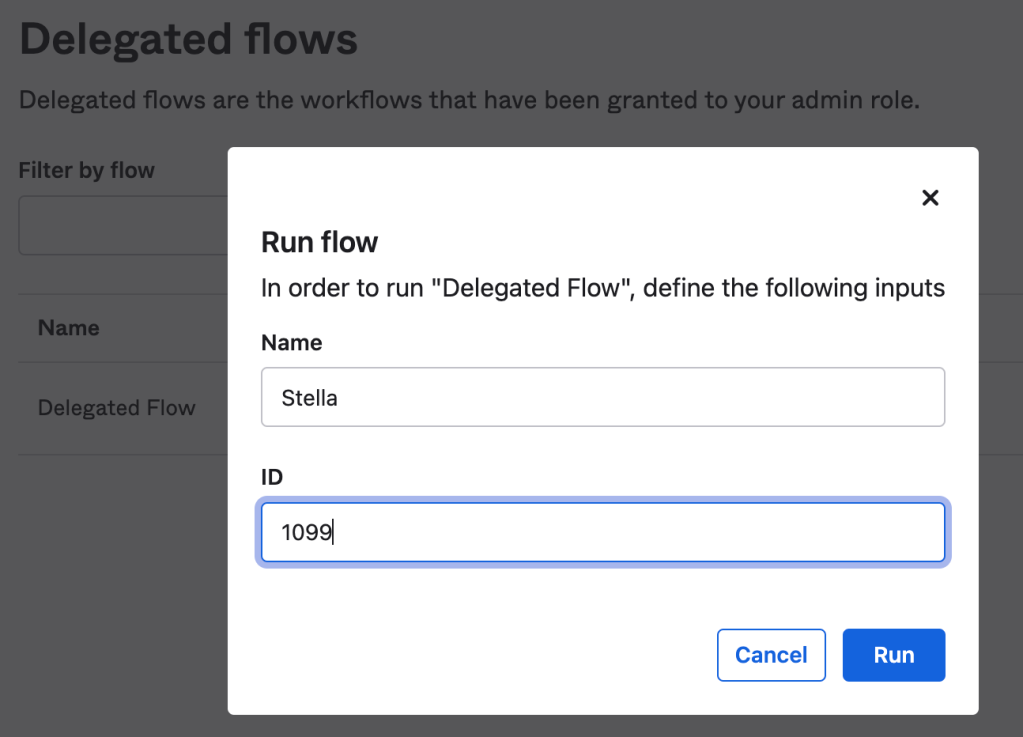

When Stella invokes the flow, Stella will need to enter flow inputs:

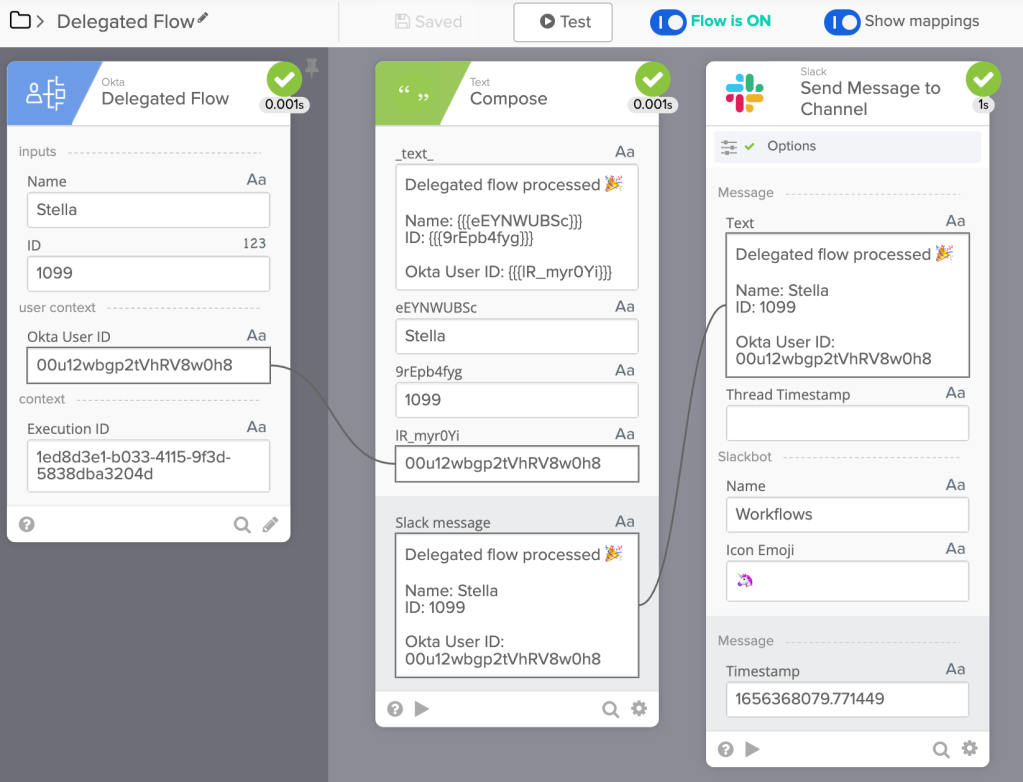

Looking at the flow history after Stella triggered the flow:
