When a card execution fails, the flow execution will stop. Any cards after the error card will not be executed. This article details how to add error handling to a flow and continue execution when an error occurs.
- Okta Workflows

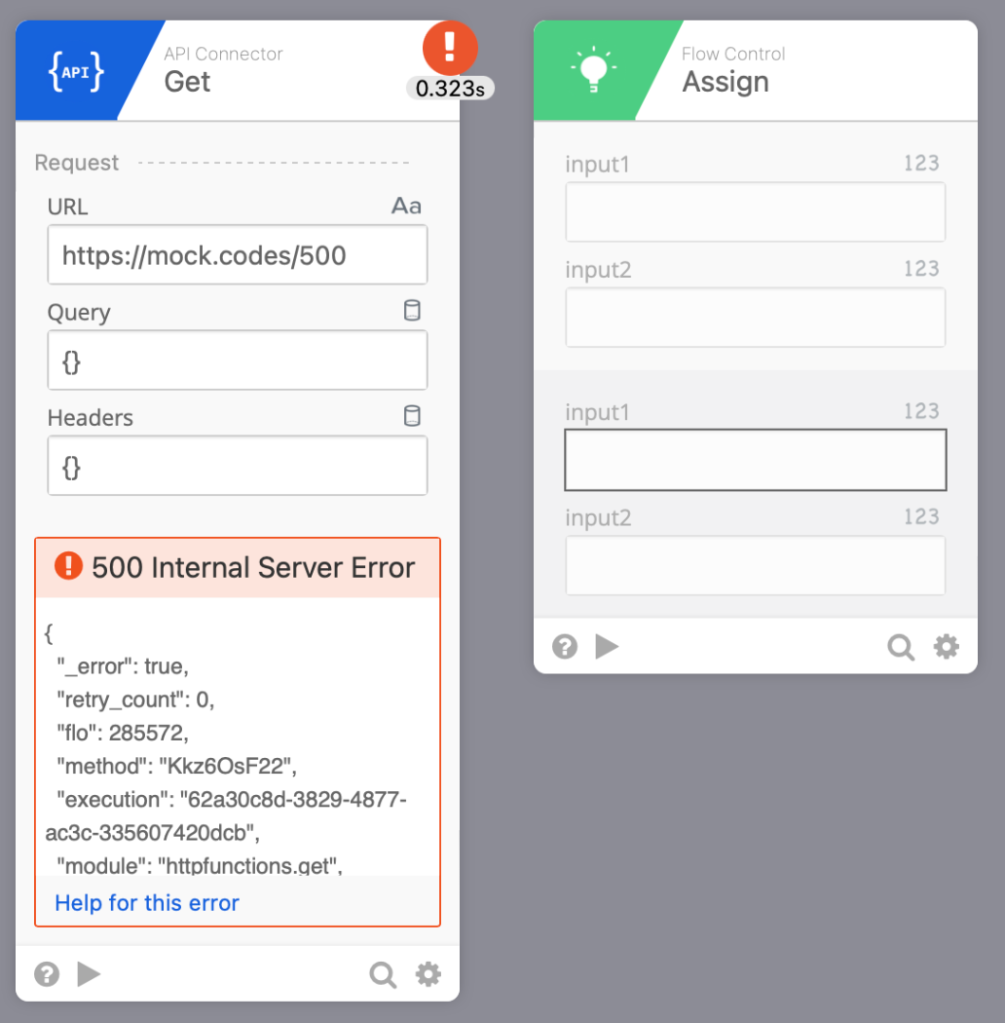

In the screenshot below, the API call fails, the flow stops executing, and the Assign card is not processed.
Card execution error

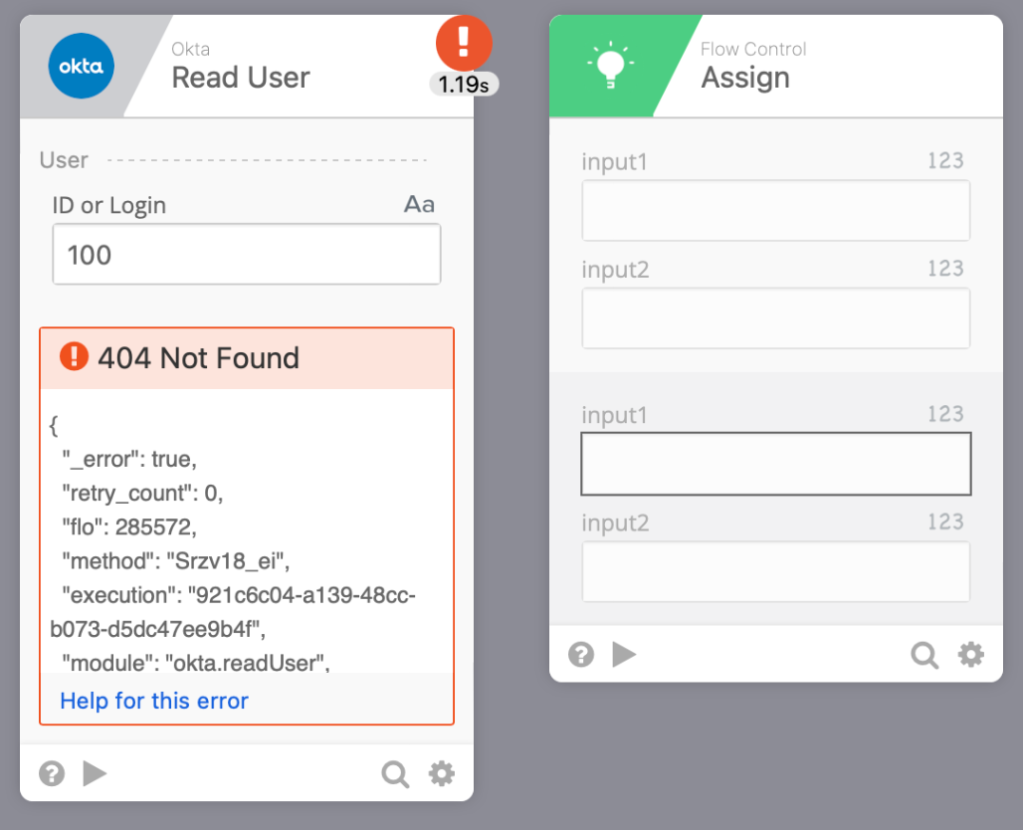

Another example where flow execution stops is when the Read User card results in an error (when providing an invalid user ID).
Card execution error
It is desired to gracefully handle the error and continue the flow execution. To do that, use the Error Handling – If Error card.
The If Error card has two sections: Try and If Error. If something is tried and fails, the if error logic will be called, allowing continuity in the execution flow.

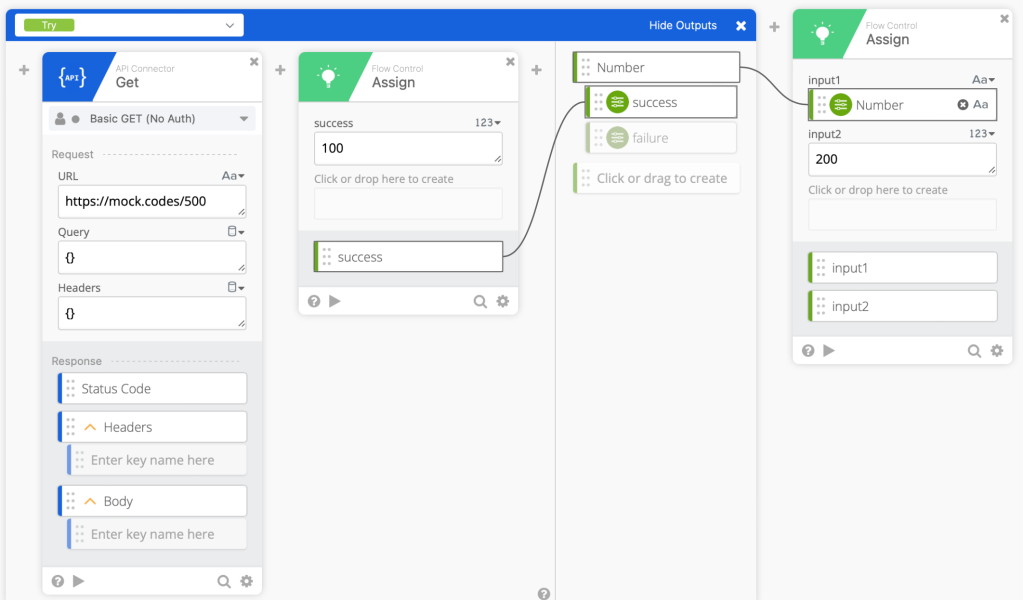

Using the API example from above, this is how the Try section looks. Place cards inside the Try section.
If Error card – Try section

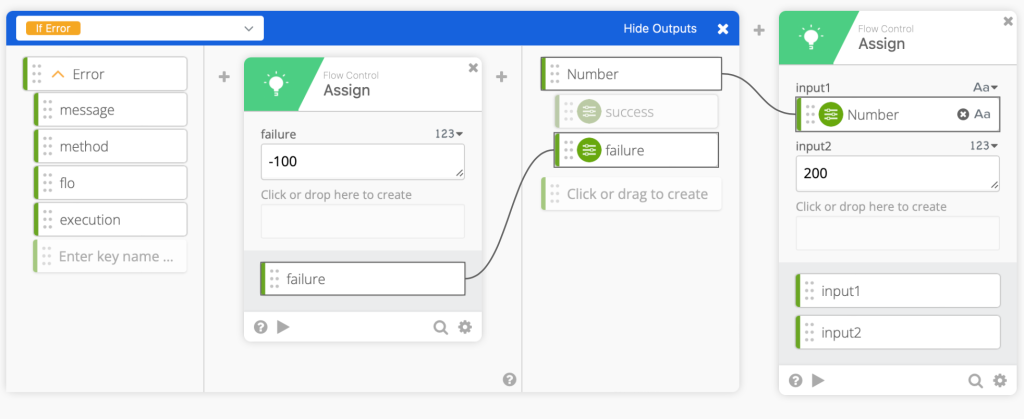

This is how the If Error section looks. Add any cards to process the error.
If Error card – section to handle error
The If Error card allows defining the output. Based on the path taken, the Number will be set to either 100 or -100.
- Learn how to create outputs for an If/Else card
- Learn How to Handle an External API Call Error in Workflows

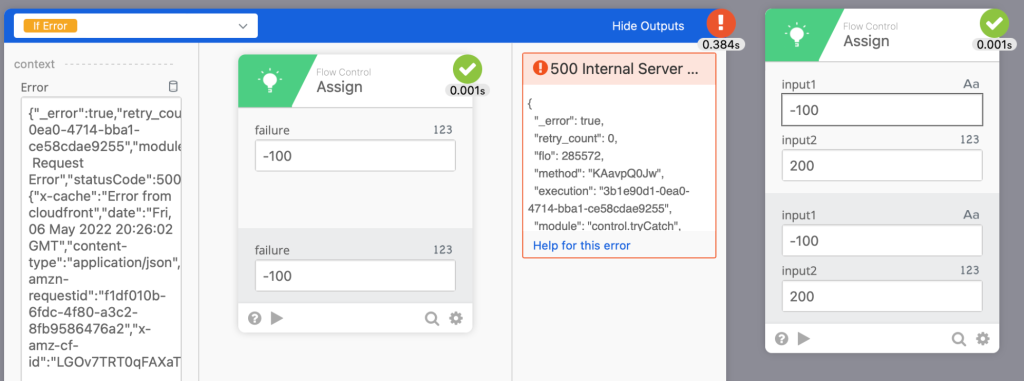

If the flow generates an error, the If Error card handles the error, and the flow execution continues. The Assign card outside of If Error was processed.
Flow execution continues after an error

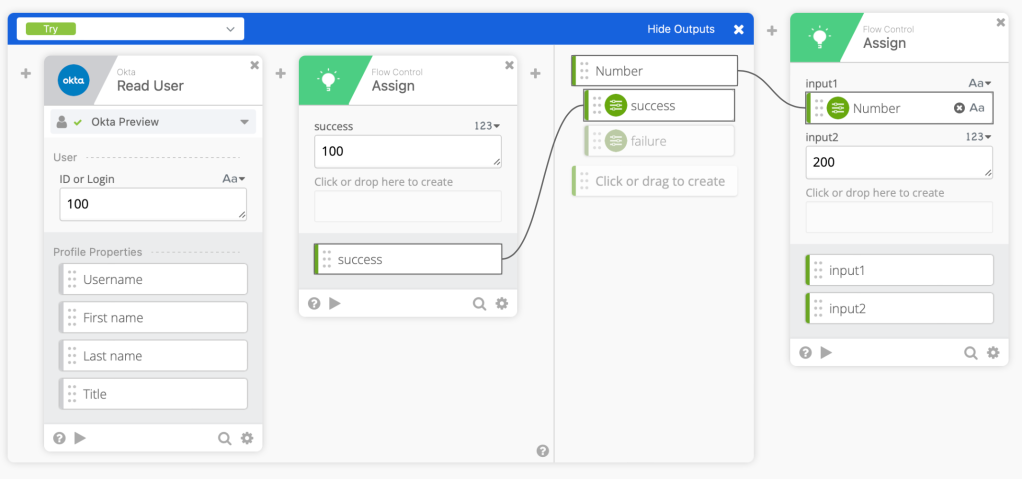

In the same way, place Read User inside the Try section of the If Error card.
If Error card – Try section

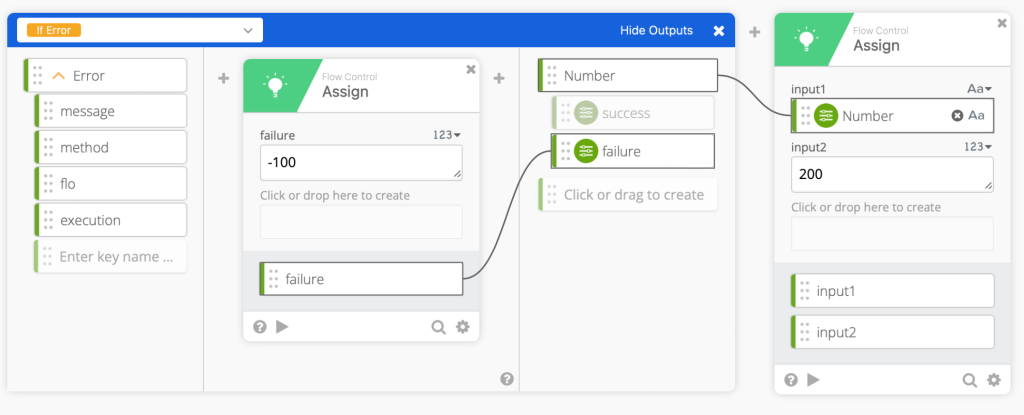

If Error card – section to handle error
Even though the Read User card results in an error, the flow execution continues. The Assign card outside of If Error was processed.
